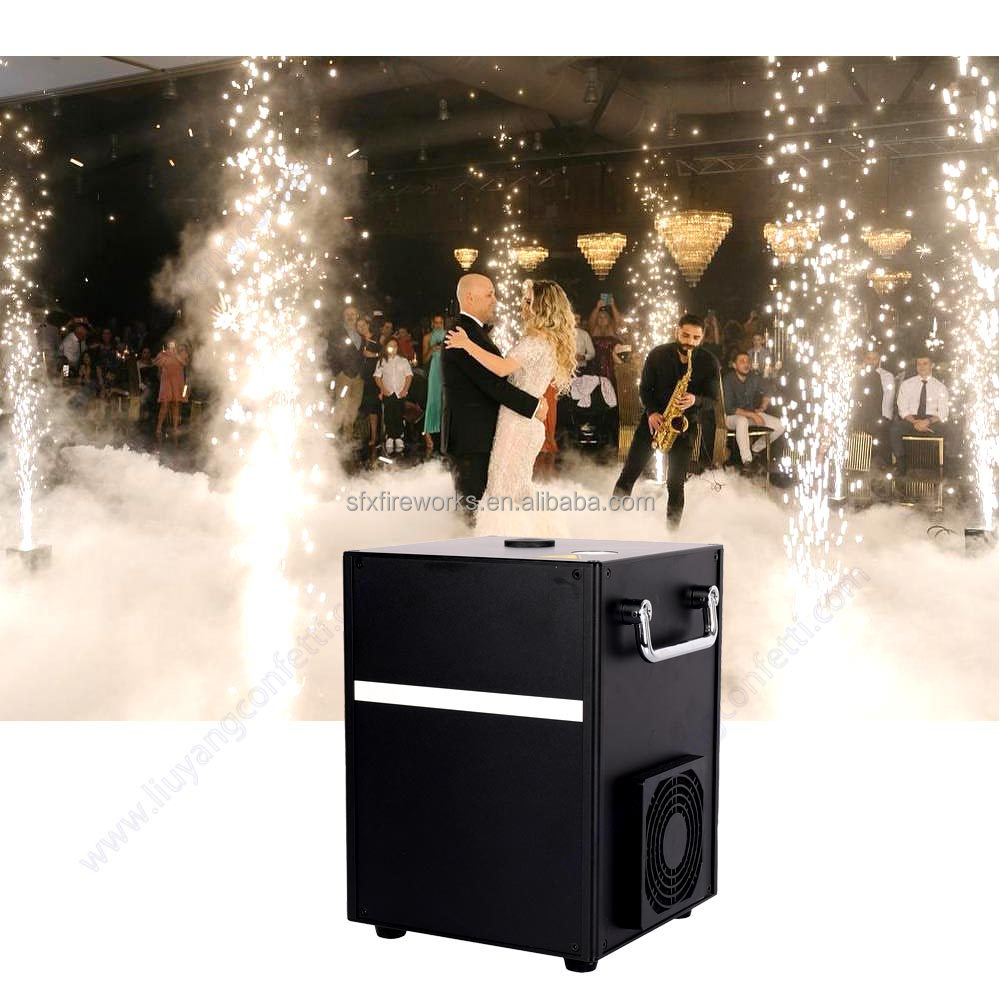

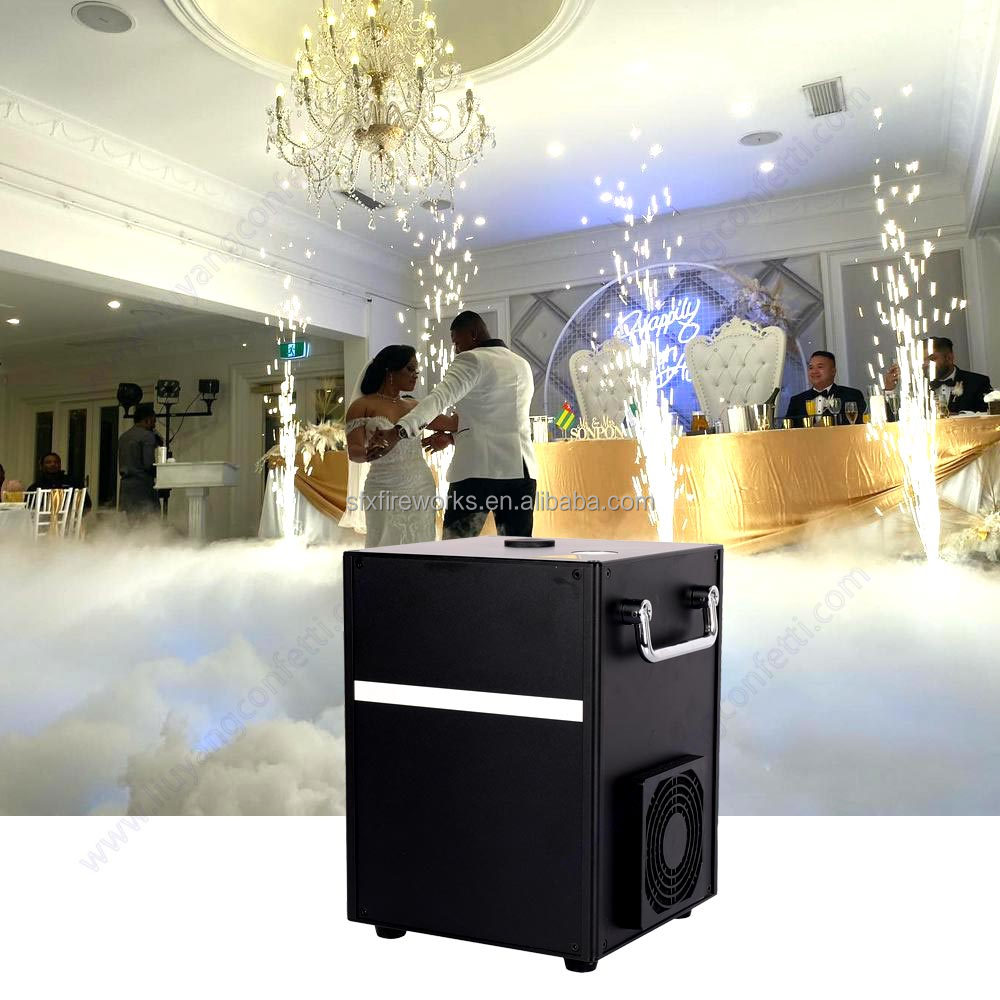

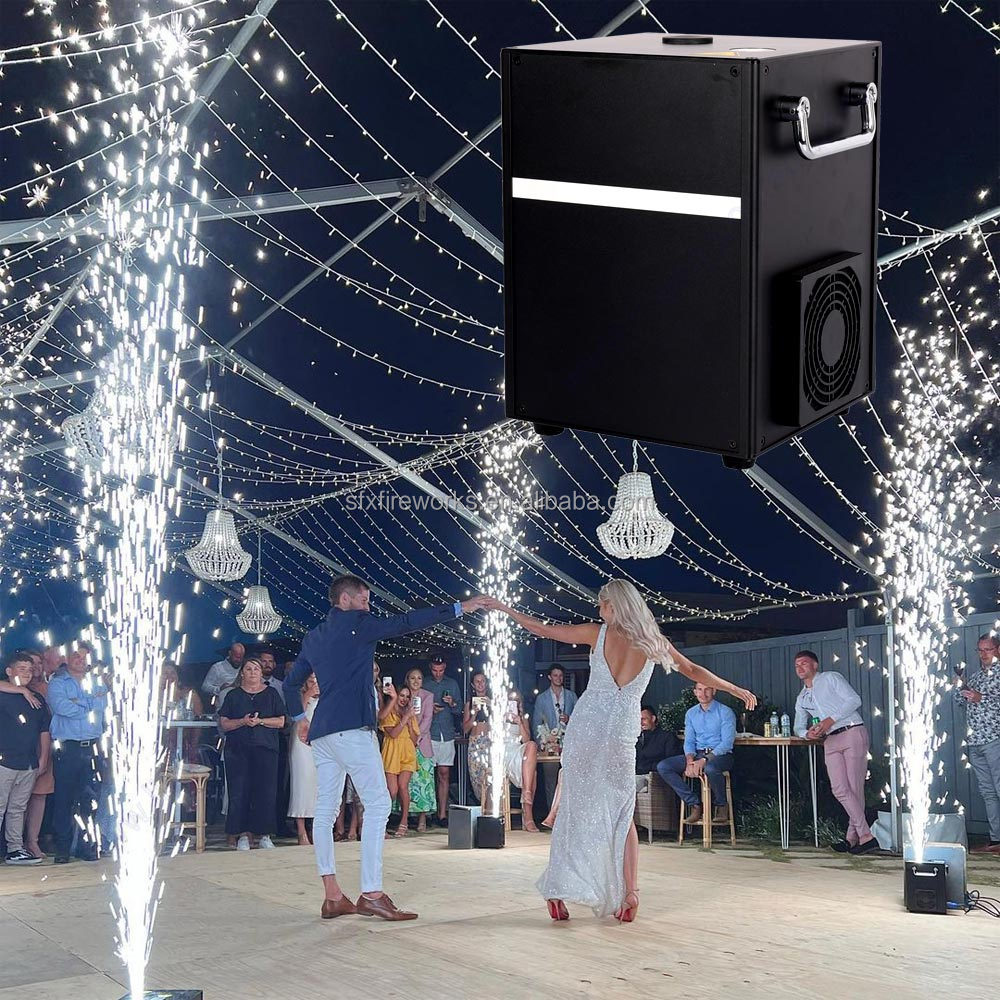

- place of origin:Hunan, China
- brand name:sfx
- model number:sf007-s
- power:650w
- frequency range (hz):na
- dimension (l x w x h):205x205x265mm
- Application:wedding
- Keyword:spark machine
- Product Keywords:sparkler
ØParameter(machine):
Working Height | 1-5M |
Working Temperature | -10℃-50℃ |
Heating Power | 650w 6A (110V Version) 650w 3A (220V Version) |
Fuse | 110V/10A, 220V/6A |
Interface | Double DMX input, Double AC power |
N.W. | 5.9kg |
Size | 185*185*252mm |
Max. connections | Max. 6PCS |
Warranty | 1 year |

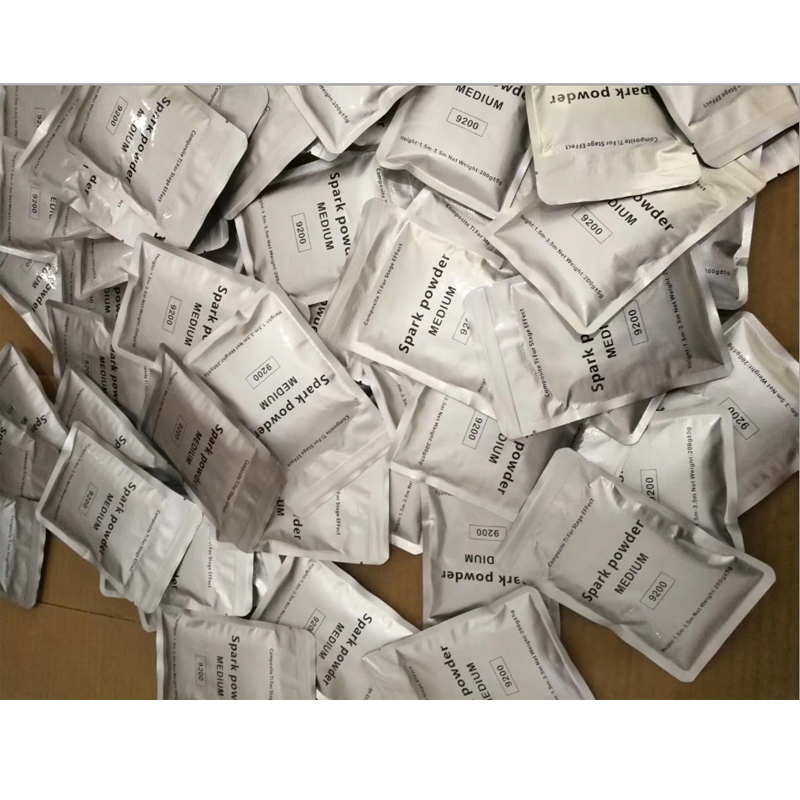

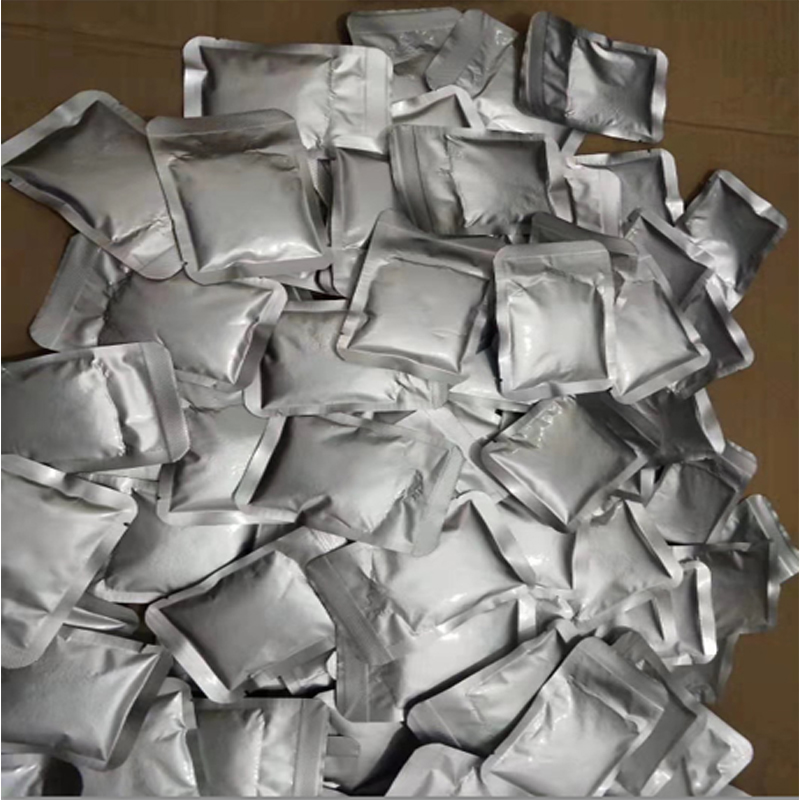

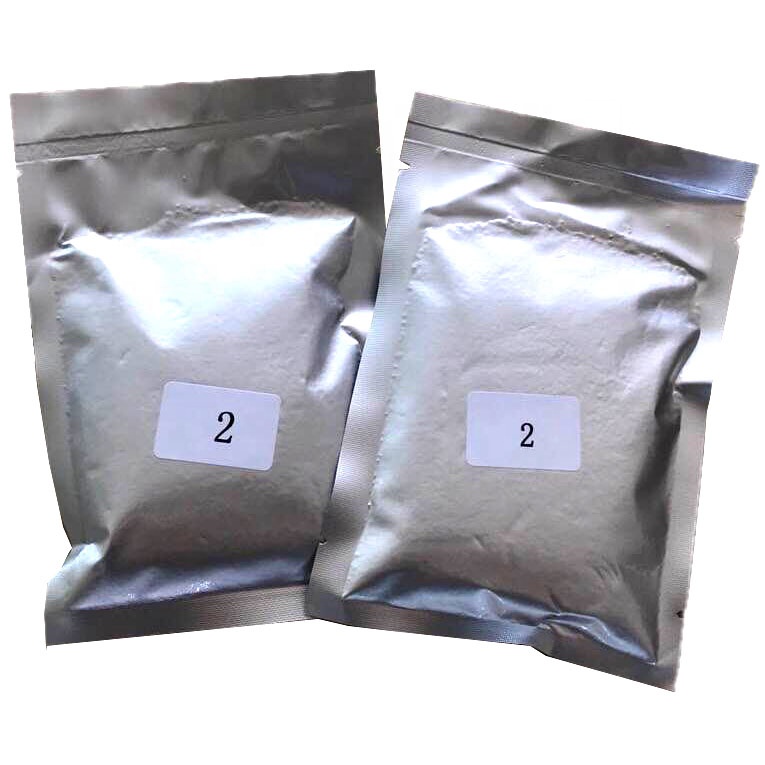

ØParameter(consumables):

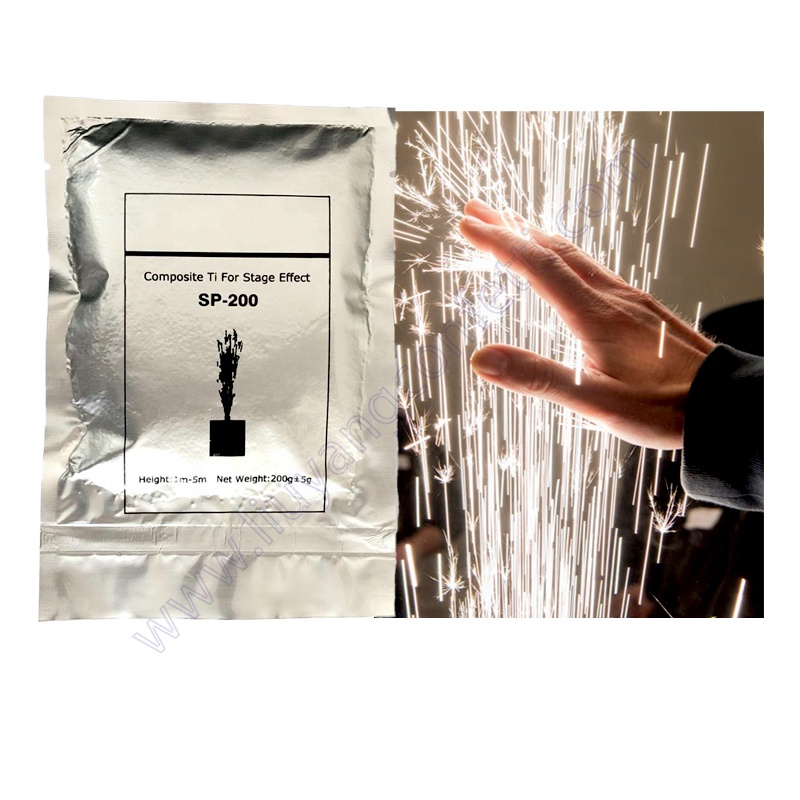

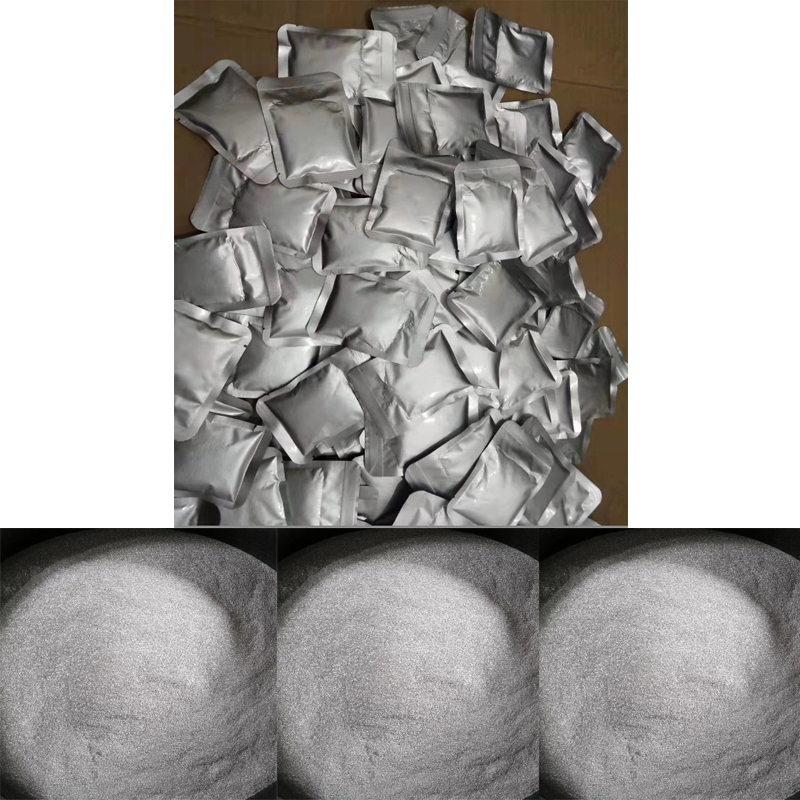

Consumable material: | Titanium Alloy Grains |
Net Weight: | 250g |
Usage: | total 15-20 minutes spark shooting |
Package: | Vacuum packing |
ØDMX 512 setting:
DMX Channel mode
The system occupies 2 channels
The First Chanel | Function | Digital Tube Display |
0-10 | Pre-heat turn off | OFF |
11-220 | Emergency stop | E57 |
221-239 | Pre-heat turn on | CLE |
240-255 | Pre-heat ON | Temperature DMX address |
The Second Chanel | Function |
|
0-15 | Turn off | OFF |
16-63 | Spark Height 1 | F1 |
64-111 | Spark Height 2 | F2 |
112-159 | Spark Height 3 | F3 |
160-207 | Spark Height 4 | F4 |
208-255 | Spray Height 5 | F5 |
5:Fault light (yellow) display and processing method
Display content | Fault causes | Solution |
E01 | Heating failure | 1:Check if the heat dissipation of the heating plate is normal. 2: Replace the heating plate. |
E02 | Heating is not controlled | 1:Replace the heating plate |
E03 | The internal temperature of the machine is extremely high | 1:Check the cooling fan, 2: stop heating and spray, restart after 10 minutes. |
E04 | The fan does not work | 1:Check if there is any foreign matter falling in the spray port, 2: Replace the fan motor |
E05 | The sensor is broken | 1:Check sensor socket, 2: replace sensor |
Keywords: | |
LED Par Light | Laser Light |
Moving Head Light | LED Light |
Stage Special Effects | Moving Head Beam Light |
DMX Controller | DMX Console |
Light Aluminium Truss | LED Dance Floor |
LED Effect Light | 230W Moving Head |
350W Moving Head | LED Wall Washer |
Laser Light | Waterproof LED Light |
LED City Color Light | Pixel LED Wall Light |
TUV Light Clamp | LED Display |
Lyre Beam Light | Battery WIFI LED uplight |

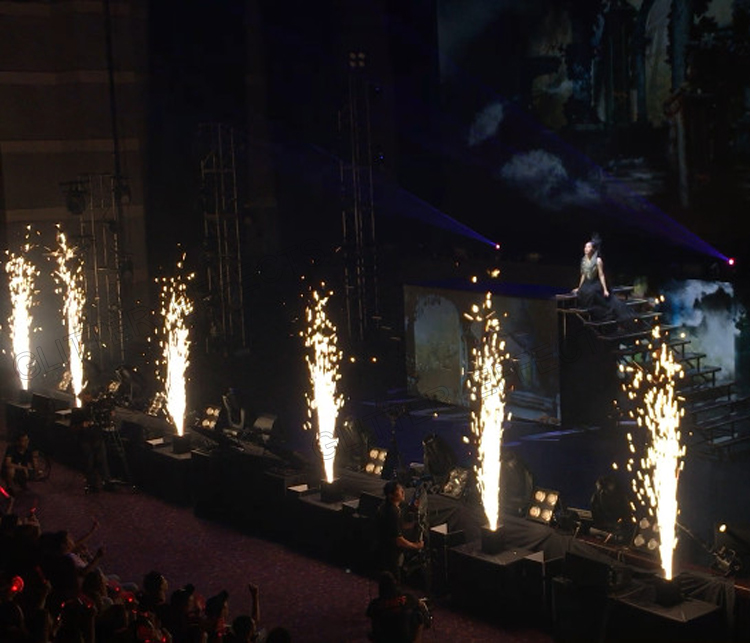

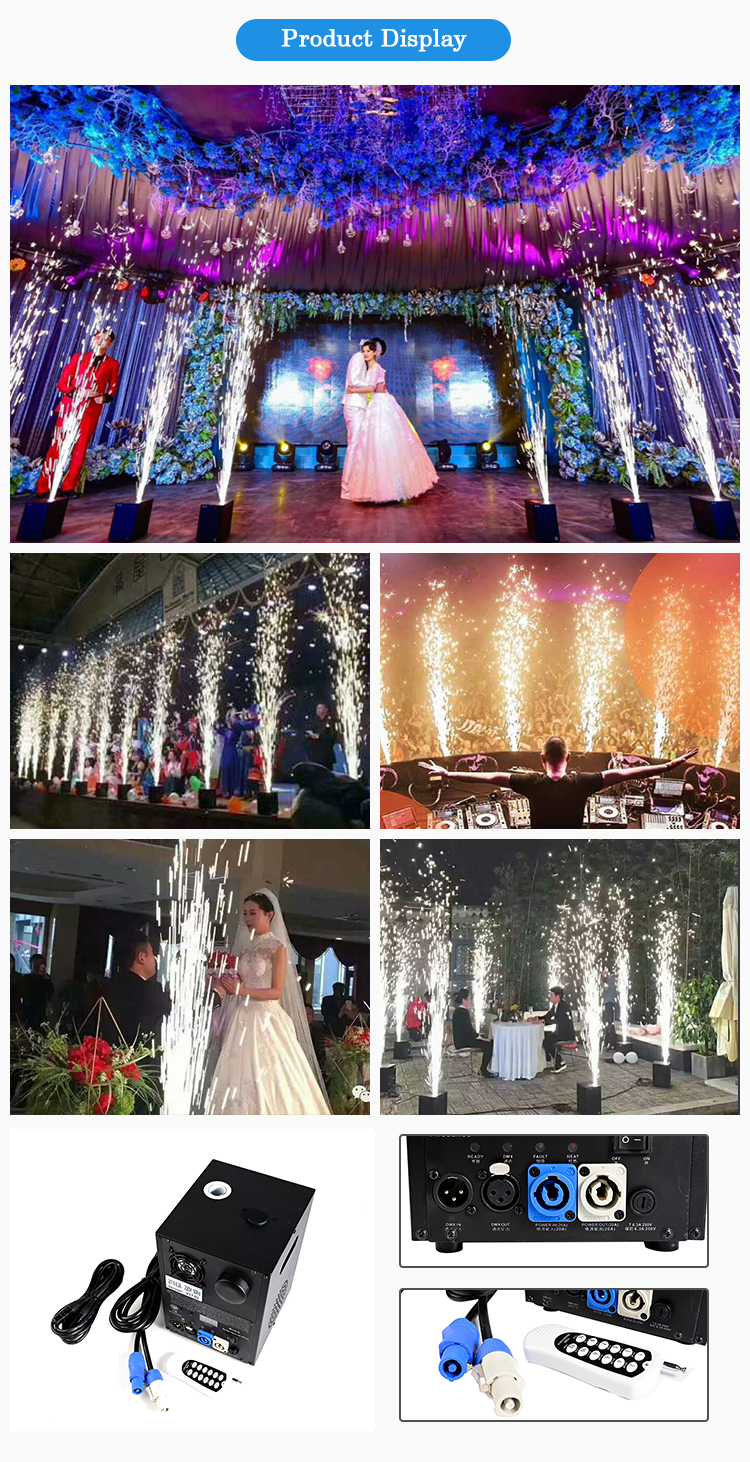

Application: | |
Wedding Party ,DJ KTV Club,Disco Bar,Cinema,Event Productions.Theater, TV Broadcast Studio,Mobile Event ETC. | |
Packing list :
1PC SW-S650
1PC Standard Power Plug
1PC DMX CABLE
1PC User Manual

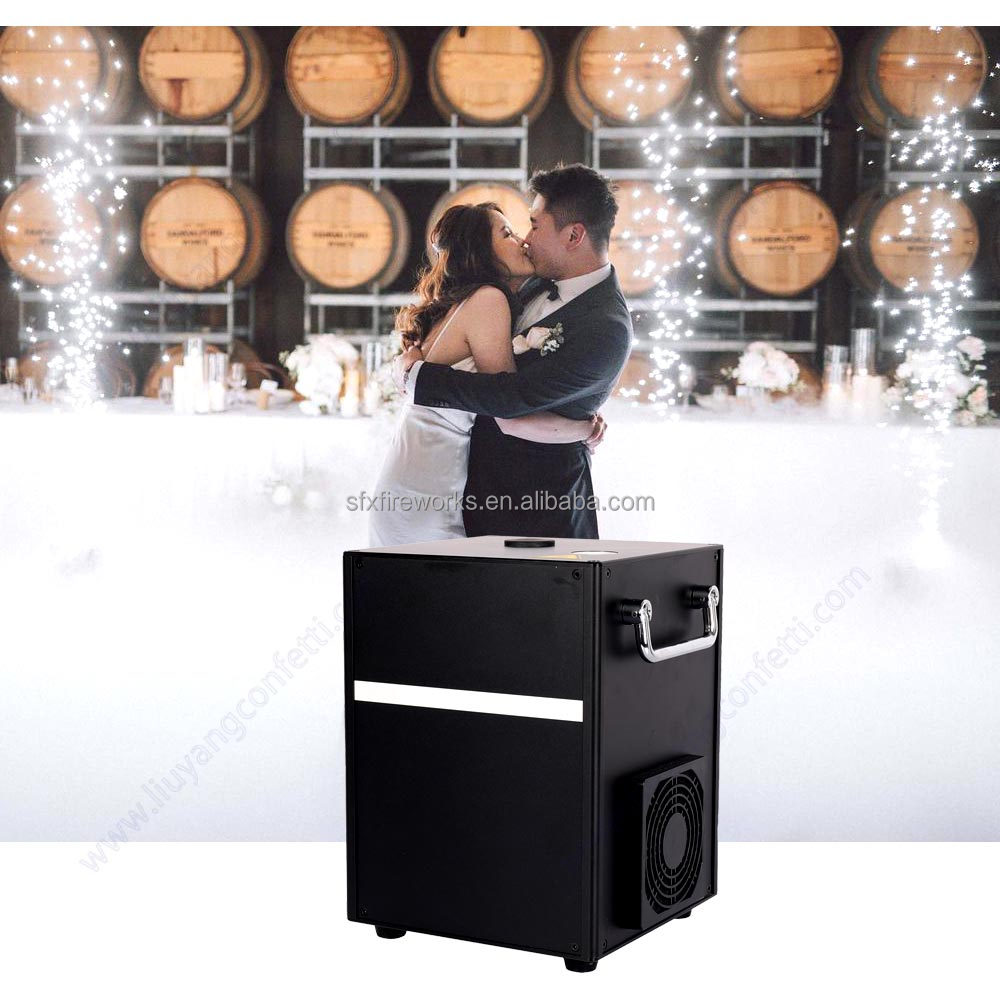

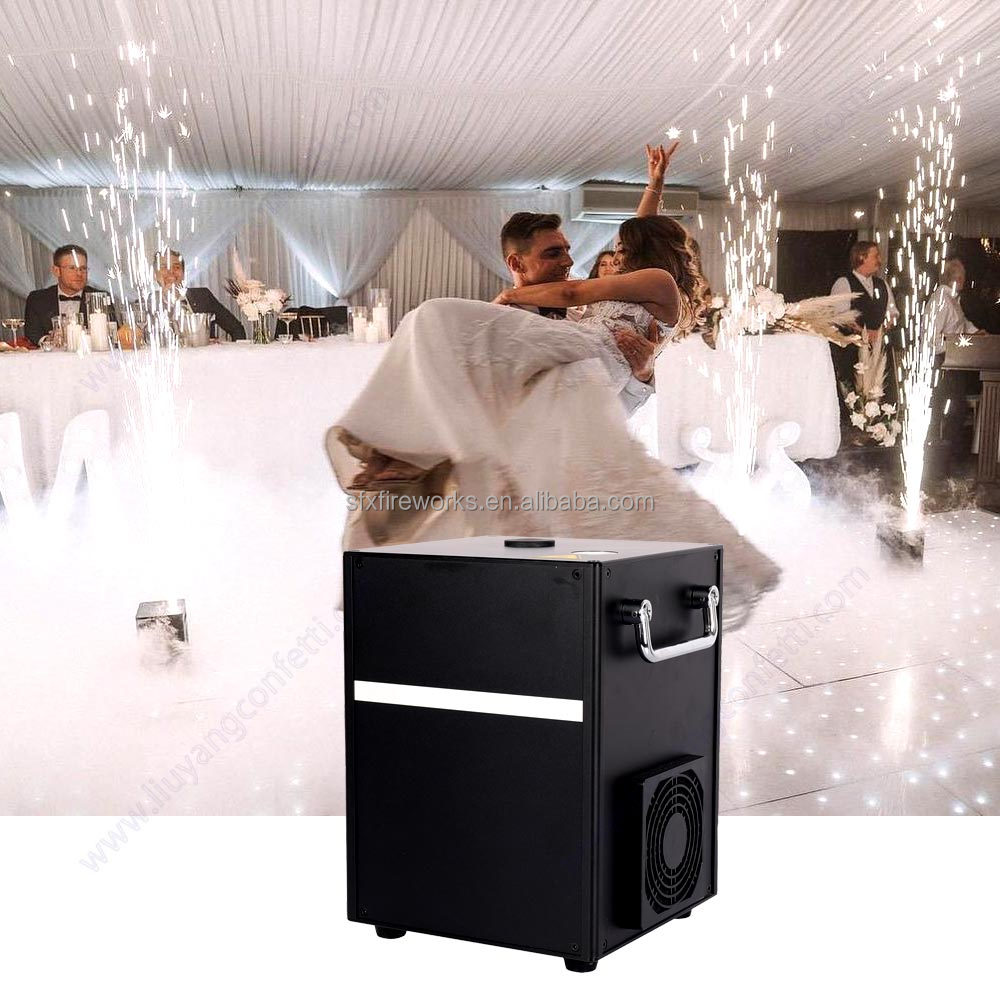

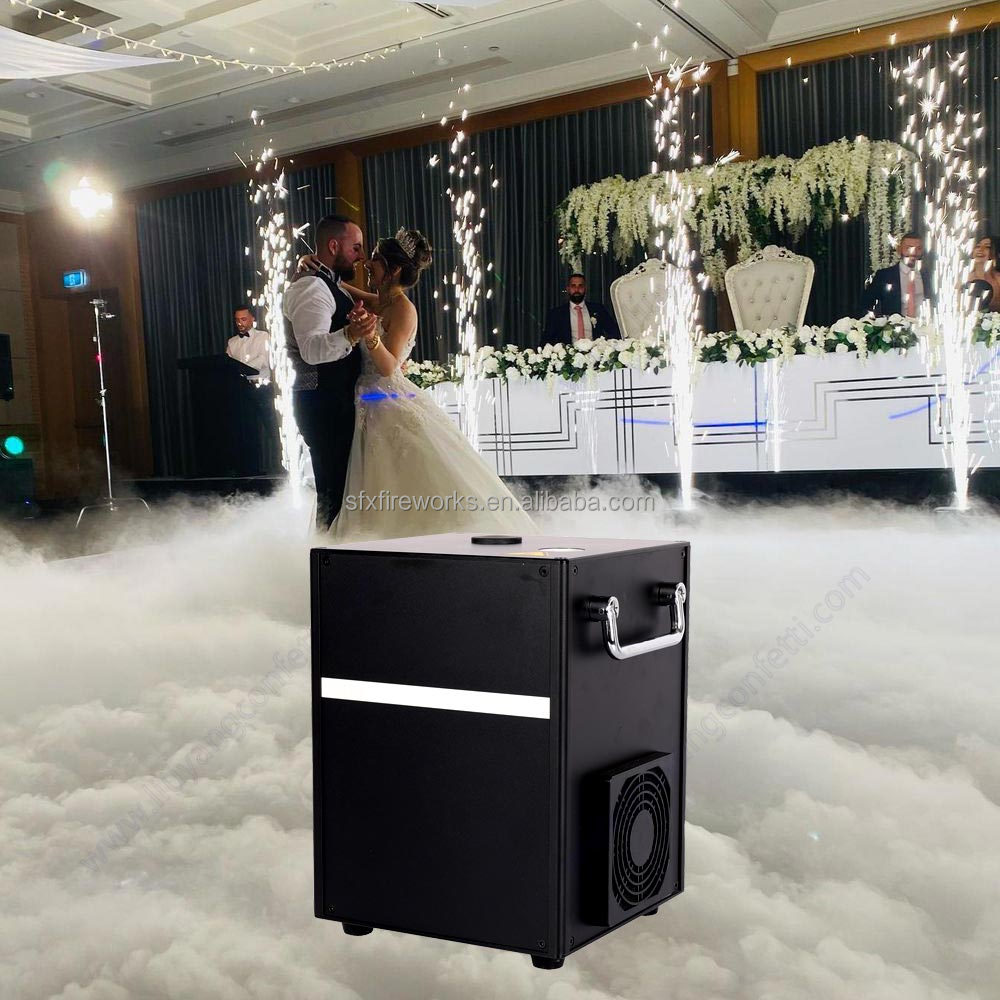

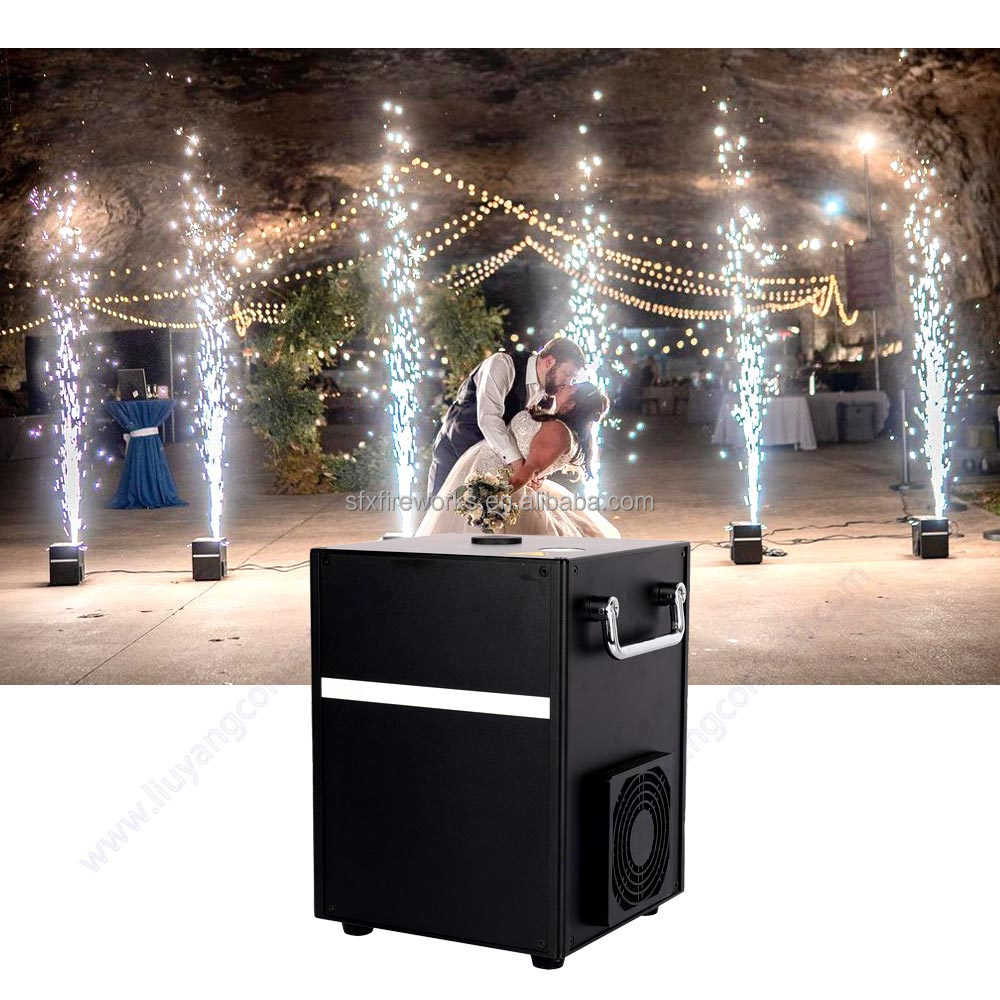

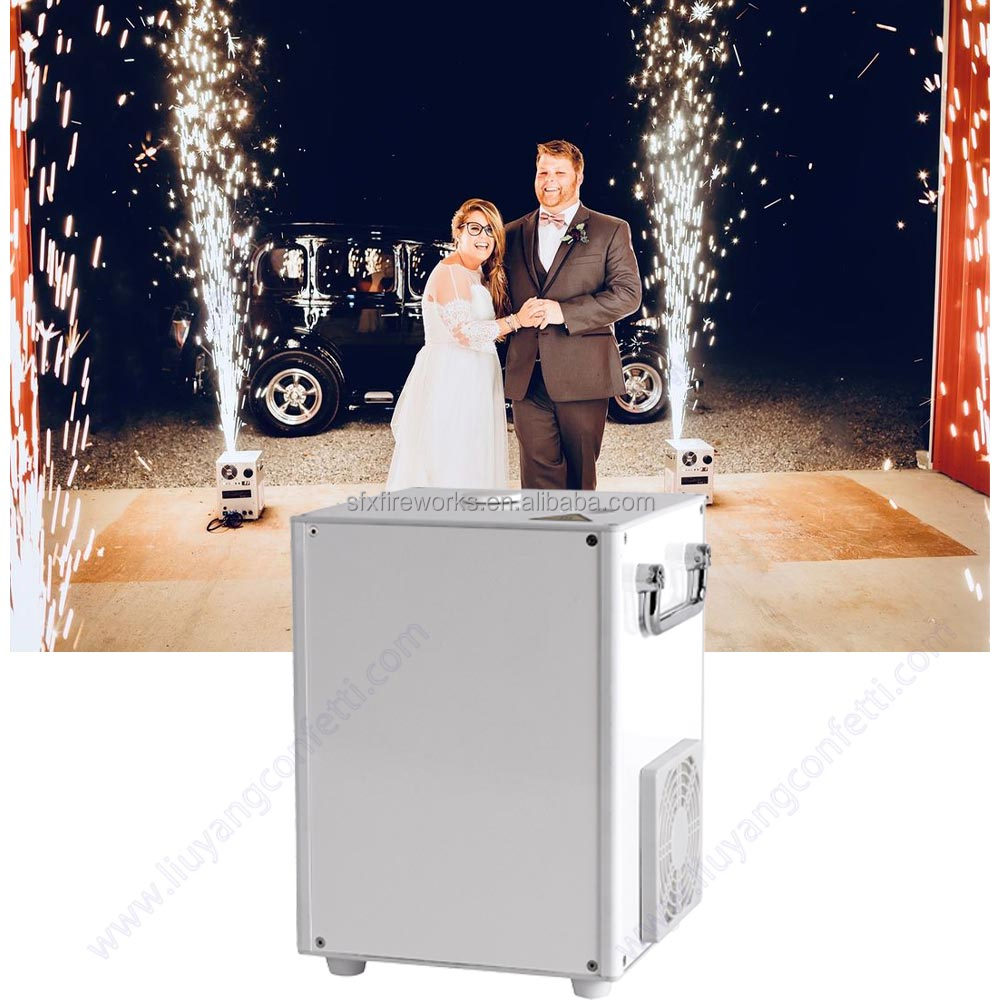

WHITE BODY:

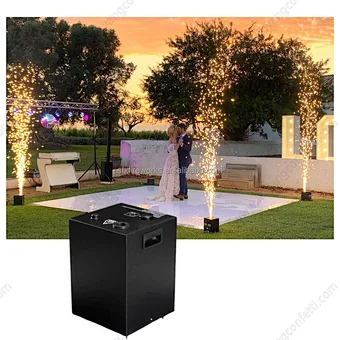

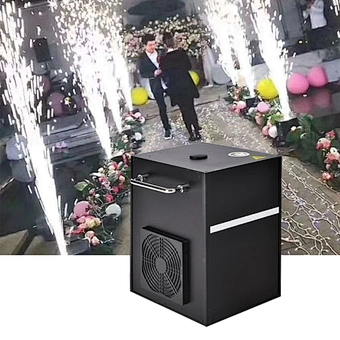

BLACK BODY

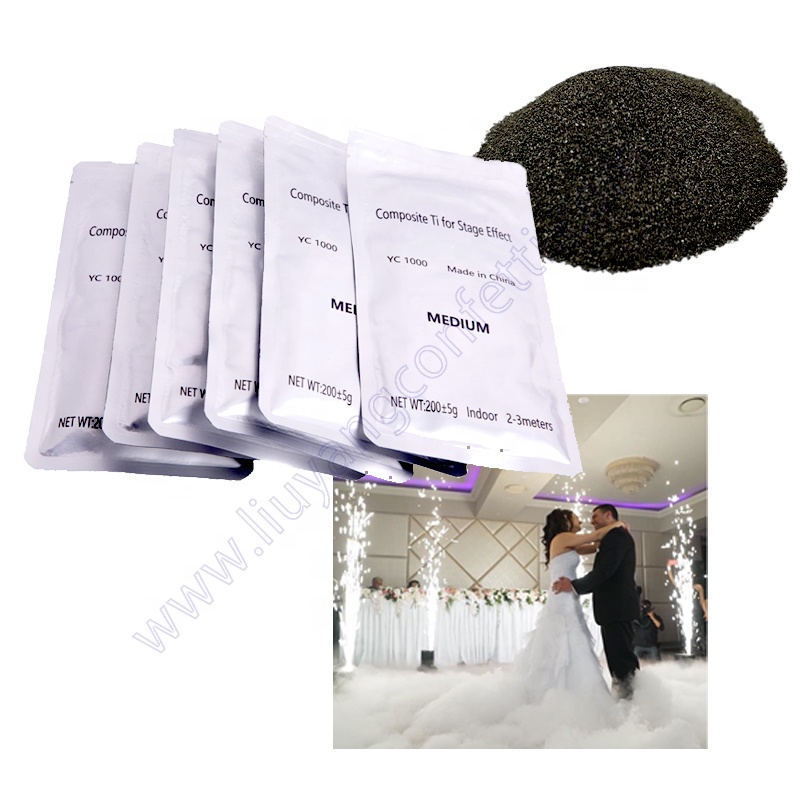

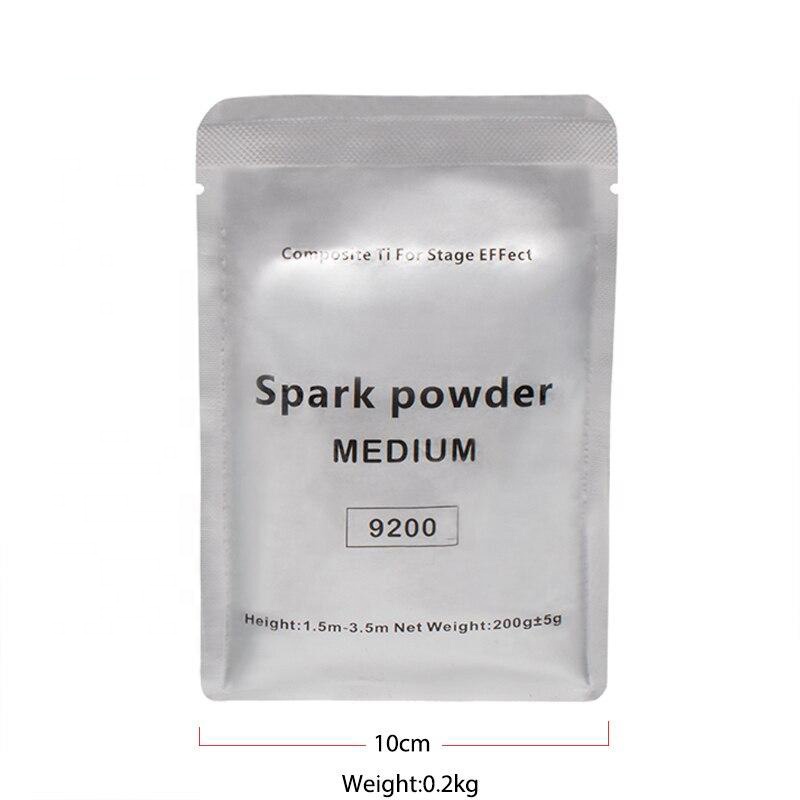

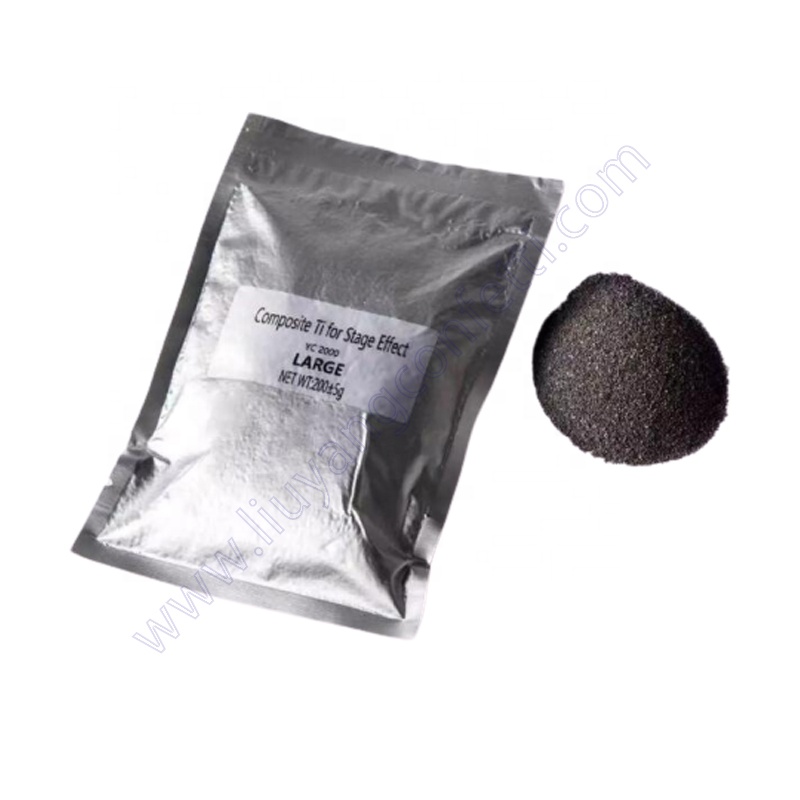

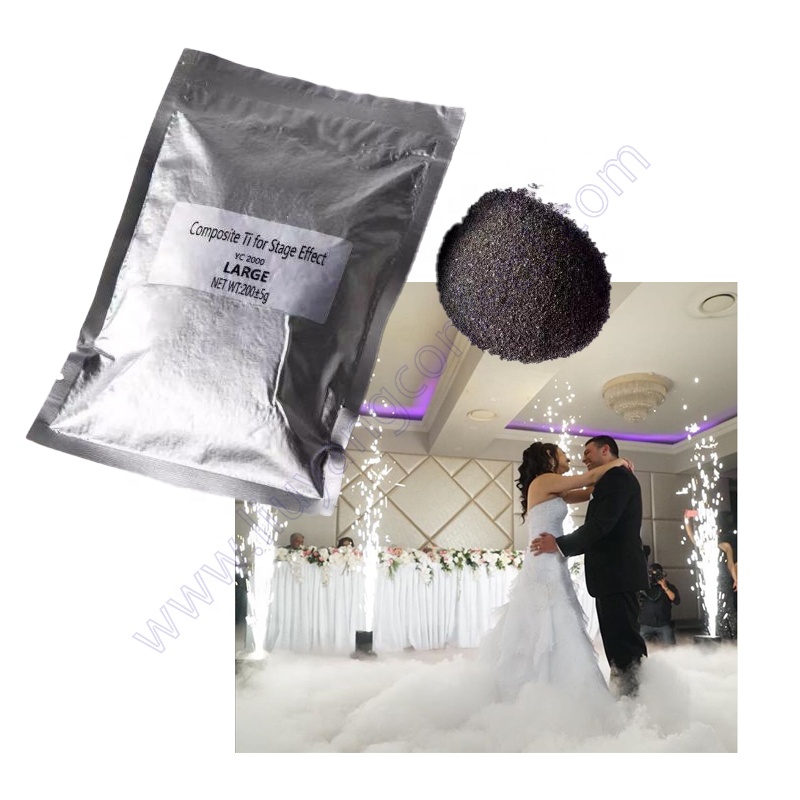

HIGH DENSITY TI PORDER FOR INDOOR OR OUTDOOR
| Model number | SF007-MR |
| Jetting height | 1-5meter |
| Operating temperature | -10℃-50℃ |
| Power power | 600W 3.8A(110V)/600W 1.9A (220V) |
| Fuse fuse | 110V/10A.220V/6A |
| Control control | DMX512 |
| Net weight suttle | 5.5kg |
| Volume Dimension | 190mm*184mm*245mm |
| Warranty period | 1 year |
| Packaging package | Packing in cartons or 1 pack in 2/4/6 flight case,boxes Carton or 1 to 2/4/6 flight case |
| Consumables | Titanium composite article |
| Net weight suttle | 100g/200g |
| Time | 100bag of Ti. powder can working for 4-15 minutes |
Click here for more information
FAQ
Q:Who will pay for custom-s duty?
A:It is buyer who should pay custom-s d-uty.
Q:LED Lighting use of the plug and voltage, is consistent with the normal use of my country standards?
A:Yes, we will be in accordance with the standards of electrical appliances in your country, to send you to meet the requirements of the plug, EU Plug, US plug, AU plug, UK Plug and so on.
Q:What if I'm dissatisfied with the product?
A:So sorry to hear that. We guarantee you will be 100% satisfied with the quality of your product. If you're unhappy with it, please contact our Customer Service who will be glad to help.
When contacting Customer Service Team, please give your order number, a short description and a photo of the problem, so we can prevent these problems in the future.
Q:May I get repair warranty?
A:We have one-year warranty in China, if you do not take the LED Lighting APART.
Q:How would you declare your product? How much tariff is declared?
A:We will declare LED Lighting according to our work experience.
Q:I want to customize the invoice?
A:Contact Customer Service Team, will help you.
Q:Can we customize Logo?
A:Yes we can. If you need to customize the Logo, please contact us.
Q:Can we customize Logo?
A:Yes we can. If you need to customize the Logo, please contact us.
Q: What can I do during the dispute?
A: Please contact our after-sales team. Please do not choose 'Return goods & refund' during dispute. We will do not provide any after-sales
