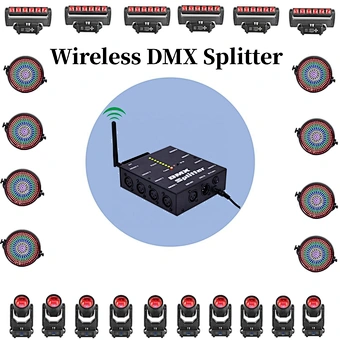

DMX signal amplifier repeater DMX Splitter 4 output ports AC 100-240V DMX controller 512

• Warranty(Year):2-Year
• Lighting solutions service:Lighting and circuitry design
• Place of Origin:Hunan, China
• Brand Name:getyourreal
• Type:DMX SWITCH, dmx splitter
• Connection Mode:dmx
• Supply voltage:AC100~240V 50~60HZ
• Rated power:4W
• Input signal:1 channel DMX512 signal
• Output signal:4 channel DMX512 signal output
• Color:Black
• Size:270*170*68mm
• Cascade number:the most can cascade 16pcs signal amplifier
• Warranty:2 years
• Certificates:CE ROHS

DMX signal amplifier repeater DMX Splitter 4 output ports AC 100-240V DMX controller 512

Summarization

AS-DMX124 signal distributor is one of DMX signal distributor series, is specially used for amplifying DMX512 digital lighting control signal and 4 channels allocation output. The input/output interface adopts high voltage isolation technology, applied to amplify DMX512 signal transmission in the short distance, as well as the using occasion where output/input interfaces need to be complete electrical isolation. Due to the independent isolation between input/output interface, it can avoid burning precision digital light console by the problem of the controlling circuit, decoder, computer light, silicon box and so on, to ensure the safe operation of digital lighting control, and also ensure DMX signal can normal transfer to all kinds of lighting equipment, so as to improve reliability for the whole digital lighting control system.

Technical Parameters

Working temperature: -20-60℃

Input voltage: AC 100 ~ 240V  50~60HZ

Rated power: 4W

Input signal: 1 channel DMX512 signal

Output signal: 4 channel DMX512 signal output, the output port can be connected to 32 equipments mostly.

The isolation voltage between input/output interface: >1000V

Cascade quantity: can cascade 16pcs signal amplifier mostly.

Net weight: 0.7kg

Gross weight: 1.1kg

External dimension: L241*W109.5*H37.5mm

Packing size: L270*W170*H6

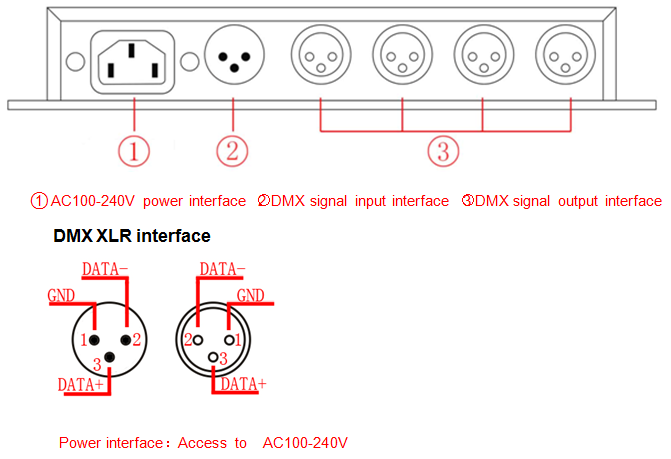

Interface Specification

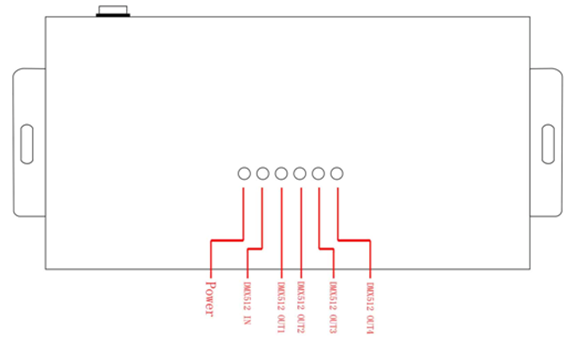

Signal light specification

Power light: light is on - Power on; Light is off - power off.

DMX512 IN light: light is on - DMX512 signal input normal; Light is off - DMX512 signal without input or unnormal.

DMX512 OUT1~DMX512 OUT4 light: light is on - DMX512 signal output normal; Light is off - DMX512 signal output failure.

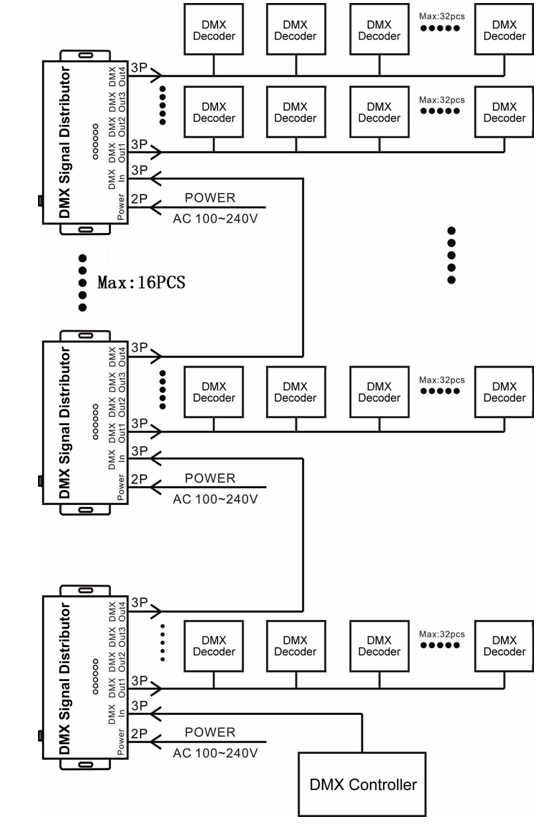

Typical applications:

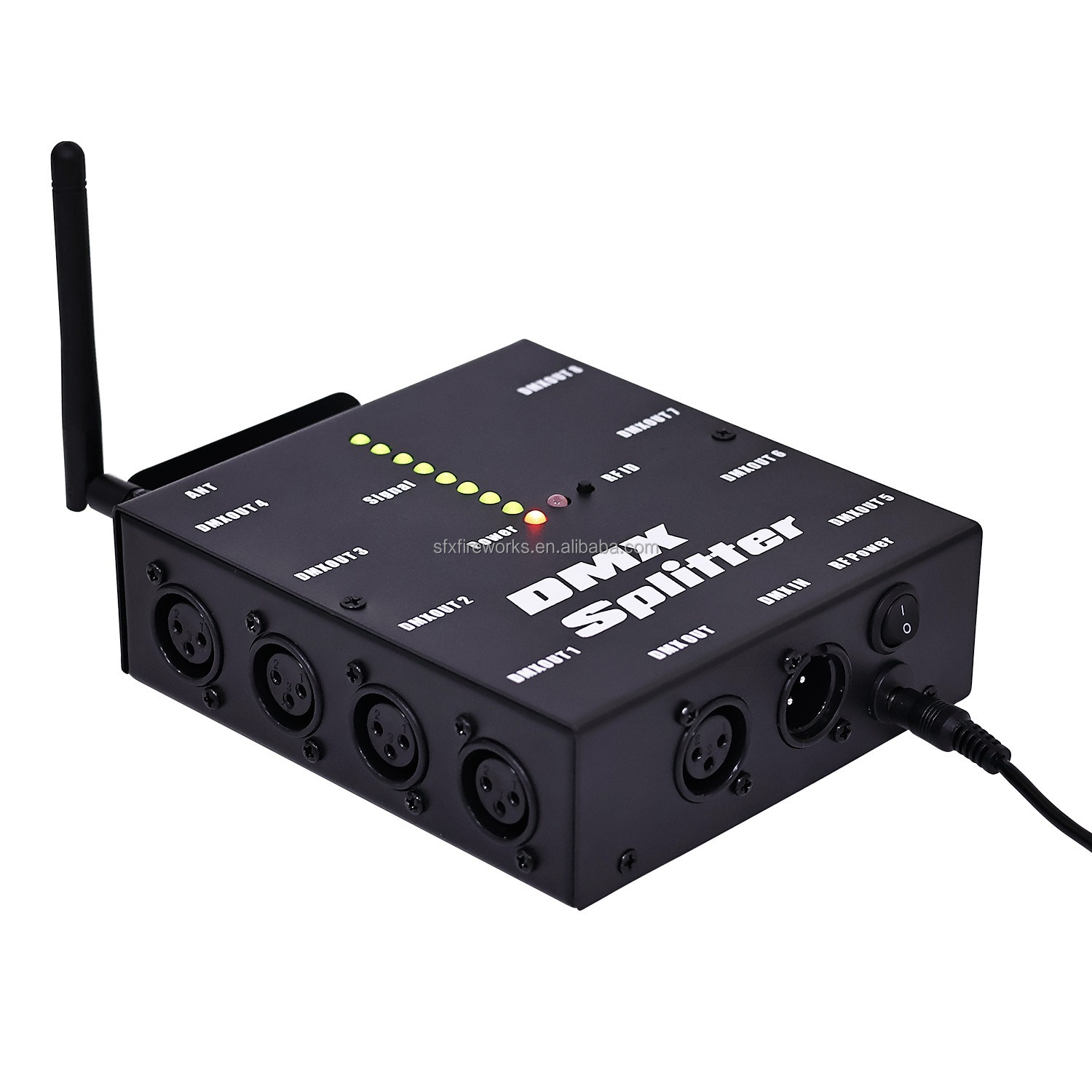

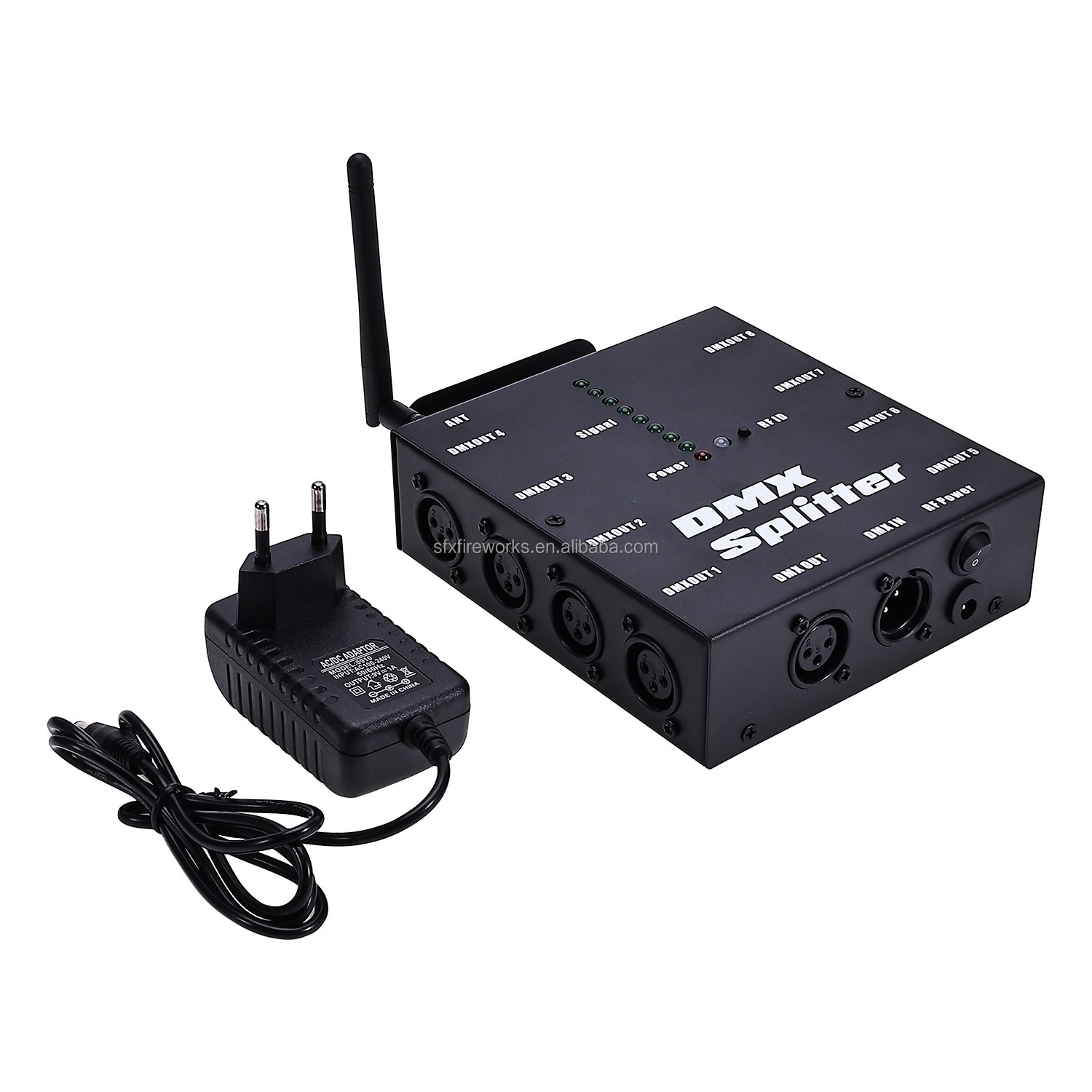

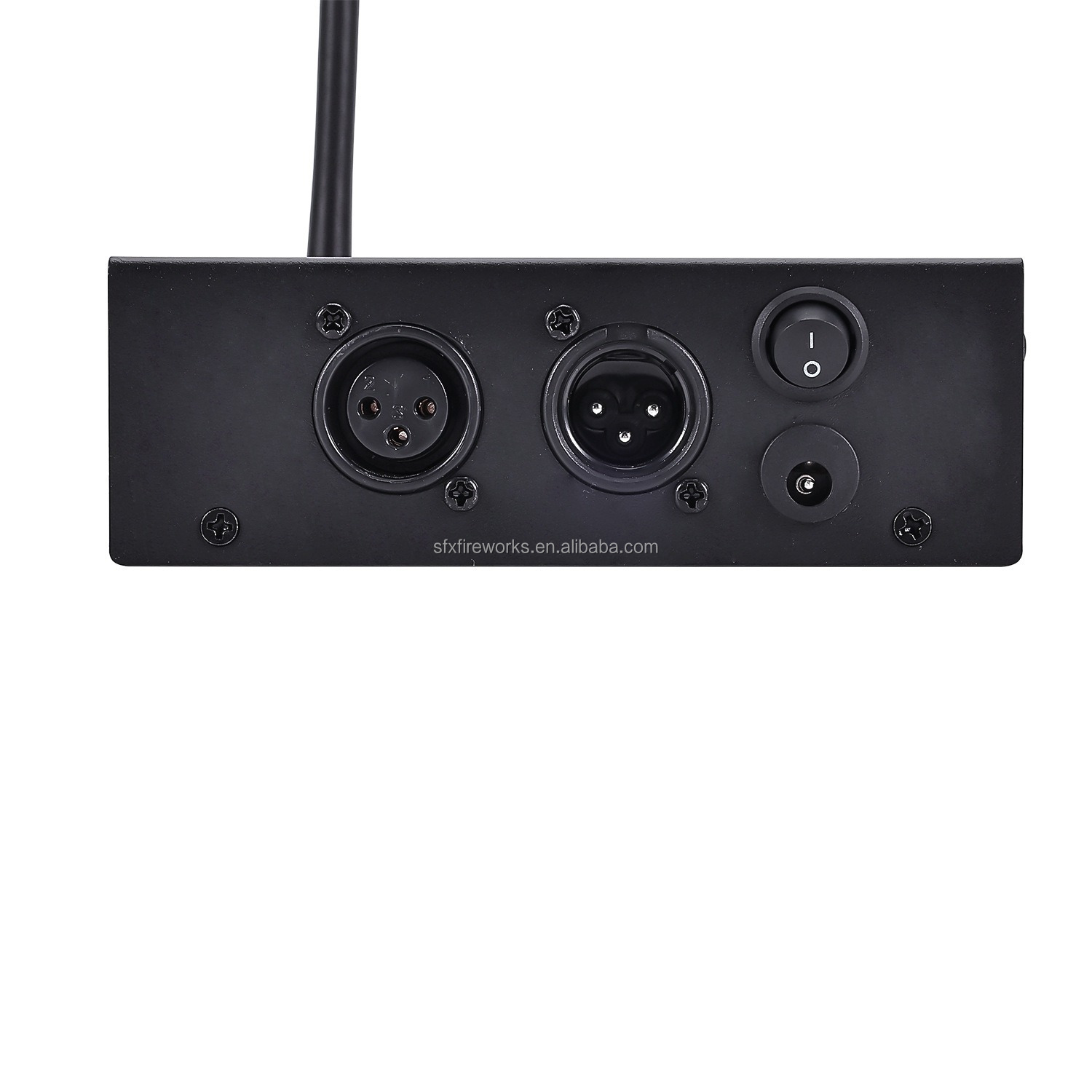

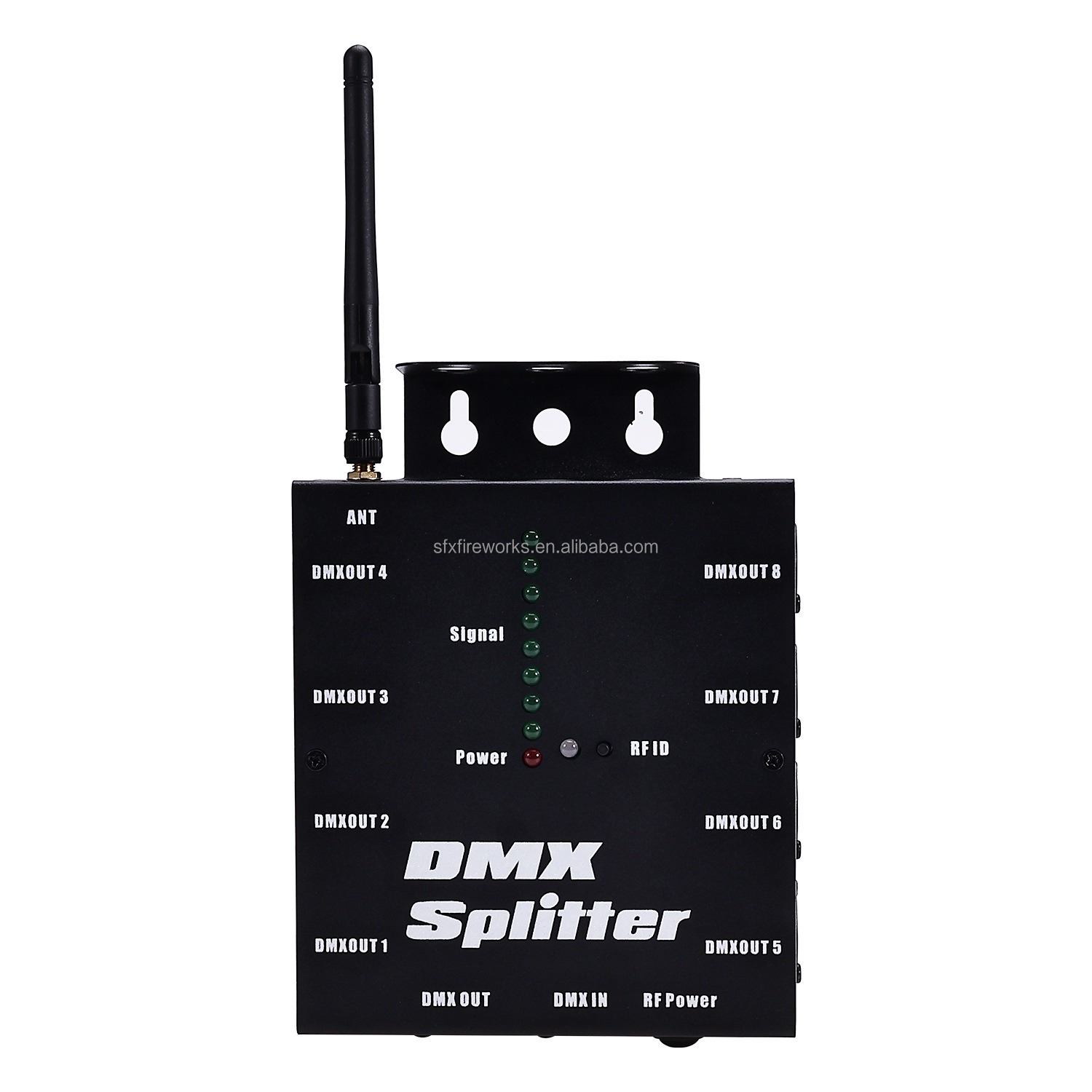

Product Picture
