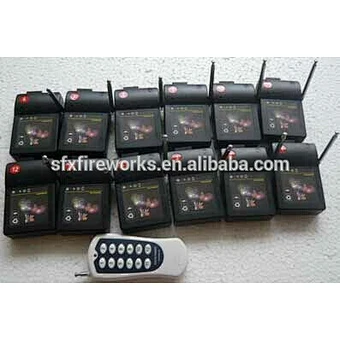

firing system 12 cues, 12 position one remote controller firing system.

• Type:Firecracker & Fireworks
• Place of Origin:CN;HUN
• Brand Name:KeSheng
• Occasion:Wedding
• Firework Type:Cake
• Model Number:29E

Quaility first,customer supreme!

We'll beat any price,guaranteed!

ALWAYS KEEP IMPROVING AND INNOVATING!

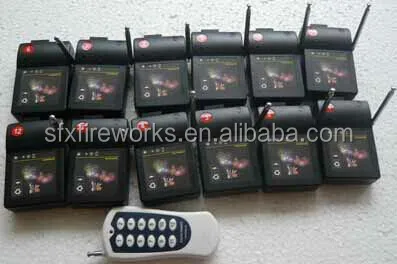

The photo of the Firing System:

To make sure that you can use the product safely, please read the introduction seriously and keep

it. ELB series system is a charging system, you need to charge for one to two hours before you use it. This system has “test” function and each cue can ignite about 20 pieces at the same time. It can ignite both e-matches and safety igniters.

1.product test(before you connect with the products)

Change the switch to TEST , put one ignitor of the product into red/black connection hole,do not press any button on the board or of the remote,if the light of the test is bright ,it means there is something wrong with this channels,but will not affect others.

2.using method

a.connect the firing system with 220V charge one to two hours

b.put the power swith to “off”,another switch to “test”,connect the products in series or parallel (in series is better)

c.line road test:put on the power switch, another switch to “test”, connect the products in series, press the relative button on the board or of the remote,if the light of the test is bright ,it means the line road is normal, if the products are in parallel connection.(test way is the same as in series)

d. After testing is well-balanced, put the TEST switch on FIRE position, press the corresponding button (or press the corresponding button of control) to fire .

e.if the channles is more than 12,when you use the remote,put the button of the remote left,it control the channels of the area A,turn right control area B.
