• Lamp Power(W):160
• Input Voltage(V):AC100-240V 50/60Hz
• Type:Moving Lights
• Lamp Luminous Flux(lm):240
• Working Temperature(℃):-10 - 40
• Place of Origin:Guangdong, China
• IP Rating:IP65
• Brand Name:SFX
• Emitting Color:RGB
• Application:Theme Park, Grand Event, Club Disco Dj Bar Stage Lighting
• Light Source:LED
• Warranty(Year):1-Year
• Certification:ce, rohs
• CRI (Ra>):80
• Working Lifetime(Hour):10000

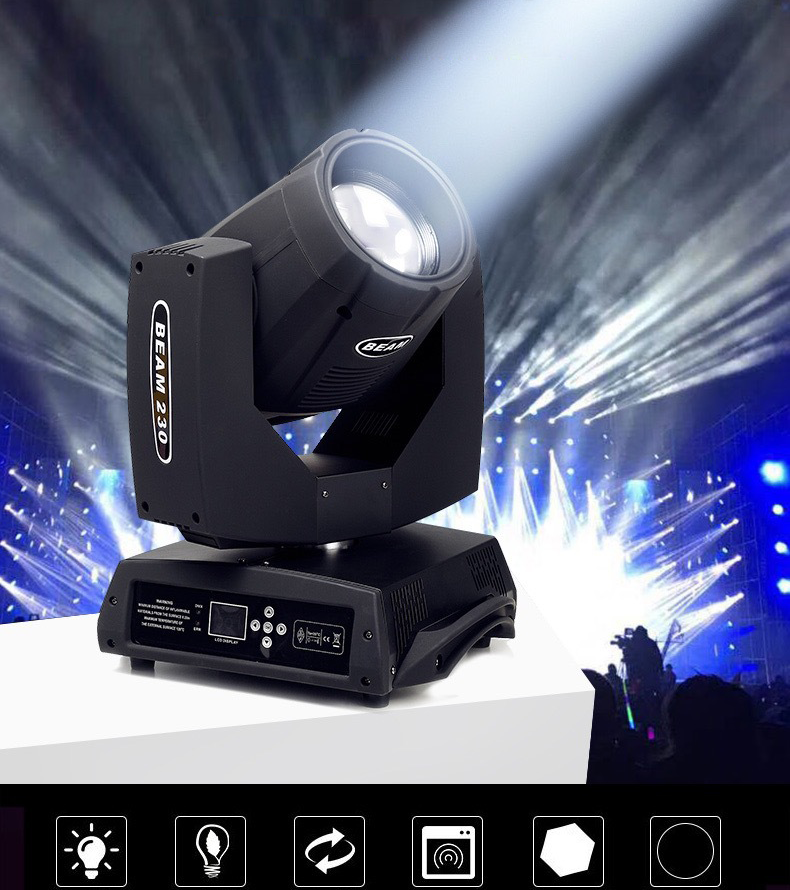

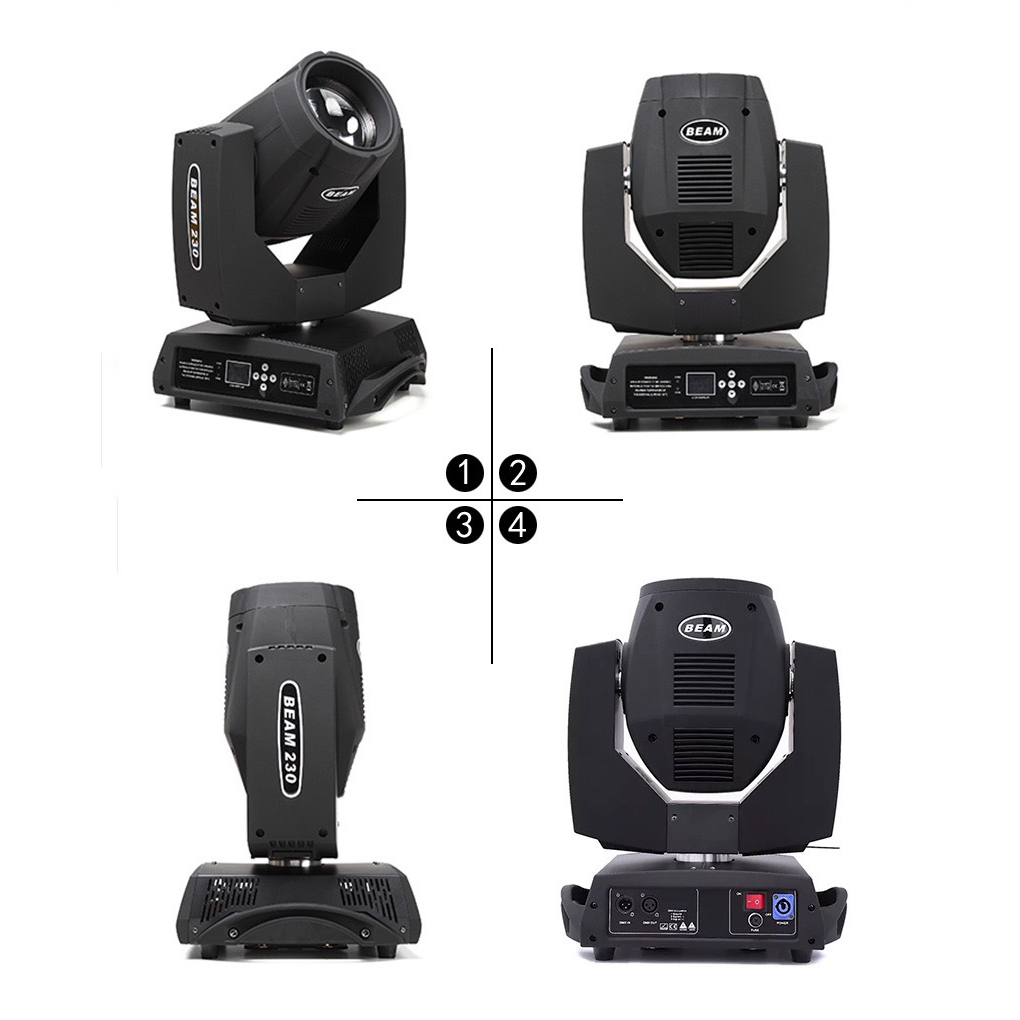

• Product name:DJ Light 7R 230W Sharpy Beam Moving Head Light

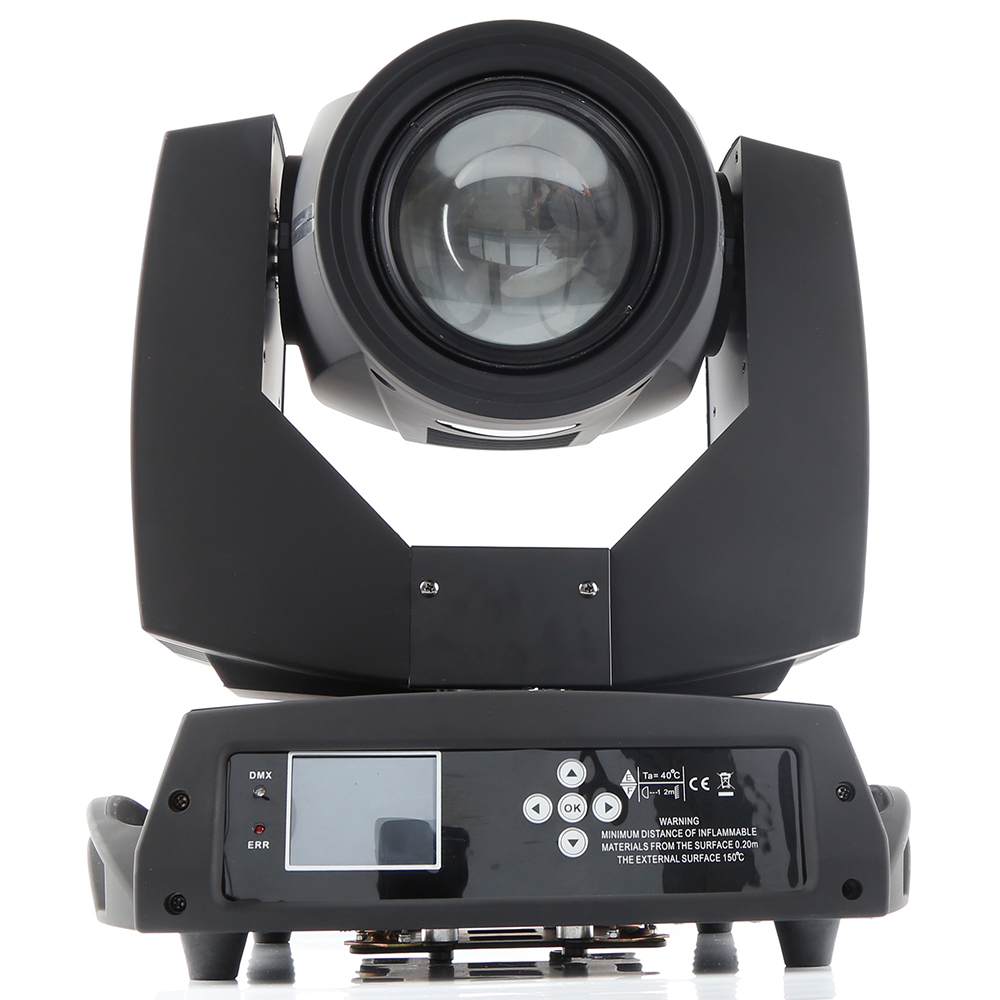

• Operation:Touch Screen, better operation
• Control:DMX512
• Lens:8-facet glass lens
• Voltage:AC100-240V, 50/60Hz
• Dimmer:0-100% dimming
• Item Type:Stage Lighting Effect
• Channels:16/20 channels can be selected when using
• Keyword:230w sharpy 7r beam moving head light,spot moving head light

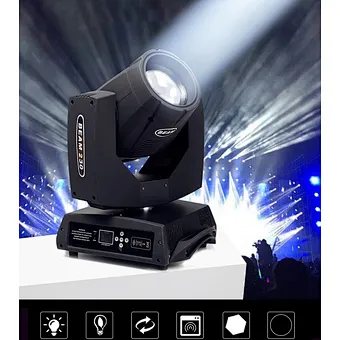

colorful rainbow 230W Stage Lighting DMX beam lamp spot Light Sharpy beam moving head light for party /show/led stage machineg

We are a manufacturer of stage lighting for more than 10 years, we work in a serious attitude, our lights are of high quality, we test the lights for more than 24 hours. After the inspection is ok, everything is ok, we then ship the goods to you. welcome to purchase from us!

Specifications:

Lamp: Osram UHP 230W 7R Lamp

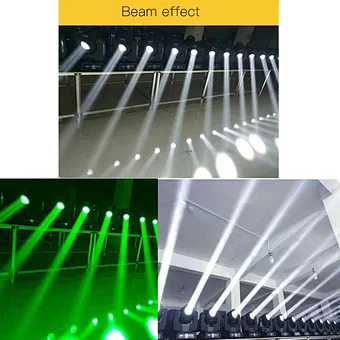

Effect: Perfect parallel, laser-like beam, colorful prism with rainbow effect, sharply defined and free of any halo

Channel mode: 16/20 channels can be selected when using

Language: English and Chinese can be selected when using

Operation: Touch Screen, and 180deg Rotating for better using when hand up the lights.

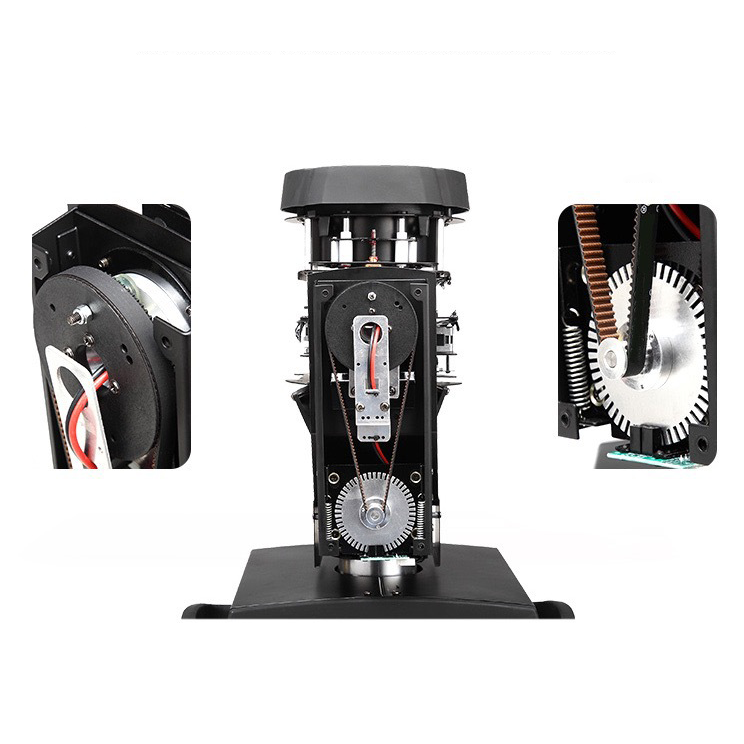

Motor: 13 Motors

Beam angle: 0-4 degree

Colors: Interchangeable color wheel with 14 fixed colors

Gobos: Interchangeable gobo wheel with 17 fixed gobos

Prism: double prisms: with a 8-facet and a16- facet glass rotating prism, achieve a colorful rainbow effect.
Frost Effect: Frost Filter
Pan/Tilt scan: 540/270 degree (16bit) Electric correction

Lifespan: more than 2200 hours
Color temperature: 8400K

Dimmer: 0-100% mechanical dimming
Strobe: Mechanical shutter and adjustable speed strobe effect
Zoom: 0-4deg Lens optical system mechanical focus
Heat protection: Automatic break in power supply in case of overheating or failed operation of cooling system

Voltage: AC100-240V 50/60Hz

Total Power Consumption: 350W

Plug: Powercon in and out, Our beam 230w is with powercon in and out, new!

IP level:IP20

lx at 20m: 59,760

Product Size:523x337x411mm
Packing Size: 48x44x57cm
Net Weight:19.5kg

Gross Weight:23.5kg

It is 23.5KG per piece. 23.5x3=70.5KG. But Aliexpress can only write 70KG, no more than 70KG.

Advantages:

BODY

Aluminium structure with die-cast plastic cover
Two side handles for transportation
Device locking PAN and TILT mechanisms for transportation and maintenance

ELECTRONICS

Long life self-charging buffer battery
Pre-set macros
Function reset from the lighting desk
ON/OFF lamp control from the lighting desk
"AUTOTEST"function from menu
ETHERNET ready
Electronic monitoring with status error
Cooling system monitoring
DMX level monitoring on all channels
Internal data transmission diagnostics
Firmware upgrade with no power
Firmware upload from another fixture

SAFETY DEVICES

Bipolar circuit breaker with thermal protection
Automatic break in power supply in case of overheating or failed operation of cooling system
Forced ventilation with axial fans

WORKING POSITION

Any Working Position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base

Product properties

Energy consumption: 230W
Operating voltage:AC100-240V 50~60HZ
Material: aviation aluminum+high strength steel+shell (high temperature resistant molded rubber shell)
Lens: 6-layer high transmittance coated optical lens
Prism: 8*16 double-layer coated honeycomb prism
Machine Color: Black
Light Source: Imported 230W-7R Bulb
Color: 13 gorgeous colors +1 white light
Pattern: 14 fixed patterns
Atomization: an independent atomization or colorful effect film
Control mode: DMX512, master slave, voice control, self-propelled display: LCD English HD display
Use channel: 16 channels
Working temperature: 10 ~35℃
Refrigeration mode: air cooling
Ip grade: IP20
Bulb life: 1000 hours
Packing size: 44*41*54CM

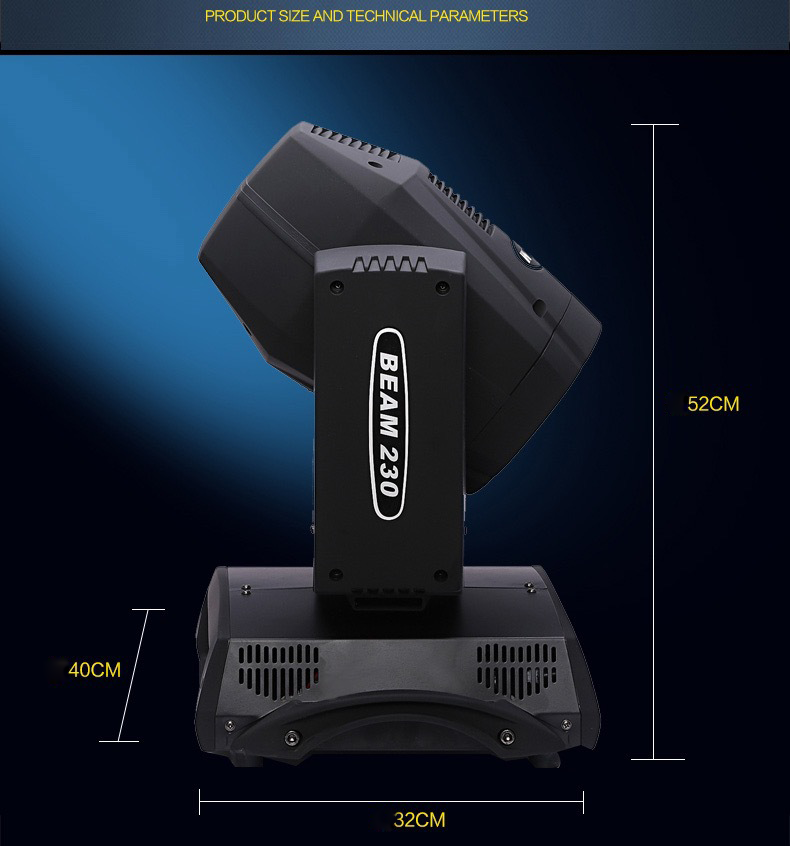

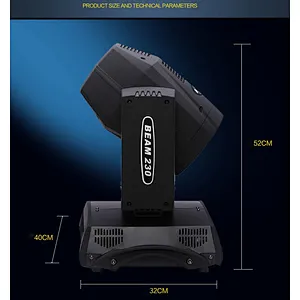

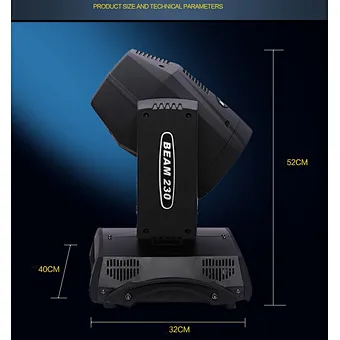

Product size: 38*32*53CM
Gross weight: 18.03
Net weight: 16.05
Packing list:
Stage lights: 1pcs
