- Color Temperature(CCT):8000K
- Lamp Luminous Efficiency(lm/w):30
- Color Rendering Index(Ra):90
- Support Dimmer:Yes
- Lighting solutions service:Lighting and circuitry design
- Input Voltage(V):AC 110-240V, 50/60Hz
- Type:Moving Lights
- Lifespan (hours):50000
- Product Weight（kg）:13.2
- Lamp Luminous Flux(lm):6900lm
- Place of Origin:Hunan, China
- IP Rating:IP20
- Brand Name:getyourreal
- Emitting Color:Cool white
- Application:Theme Park
- Light Source:Halogen Bulbs
- Warranty(Year):1-Year

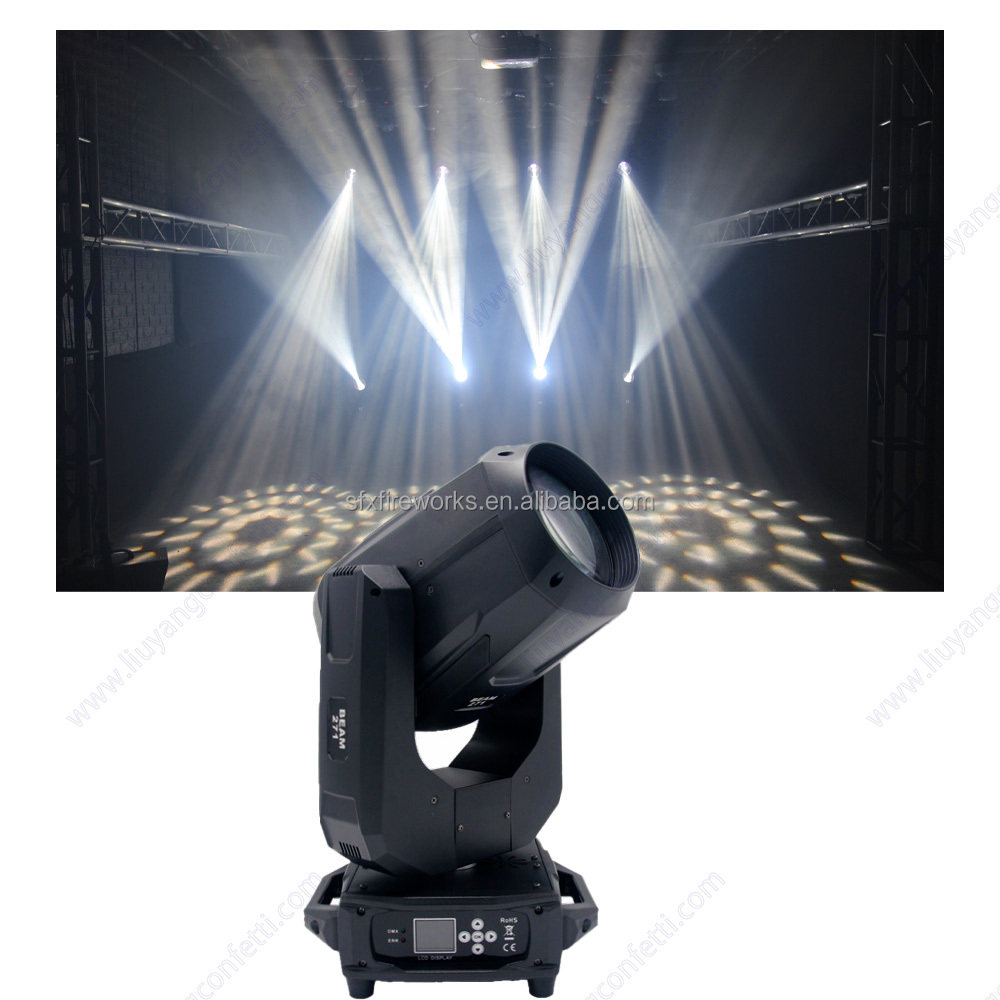

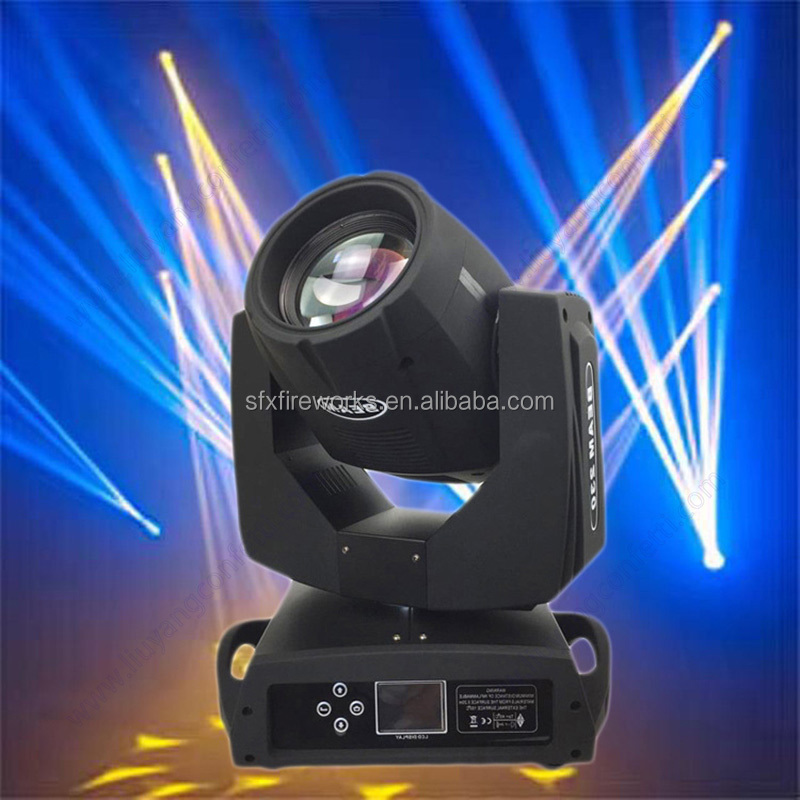

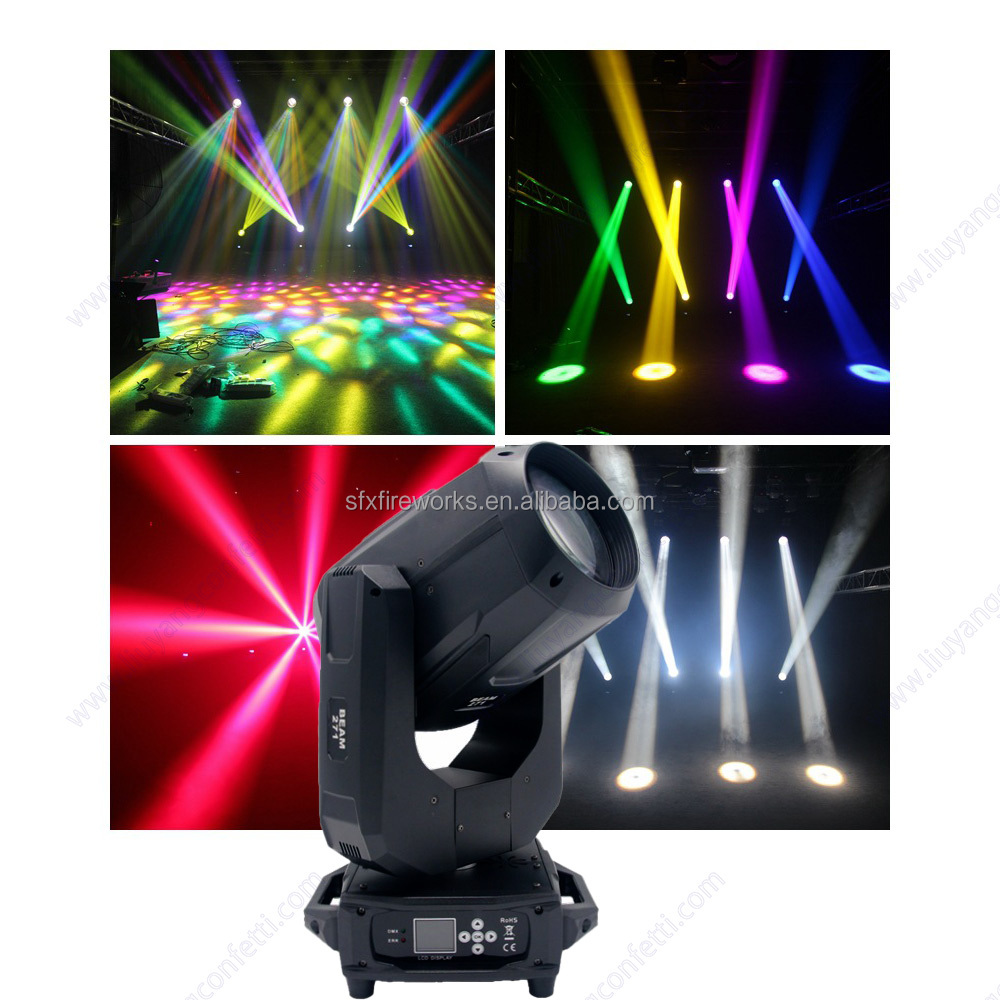

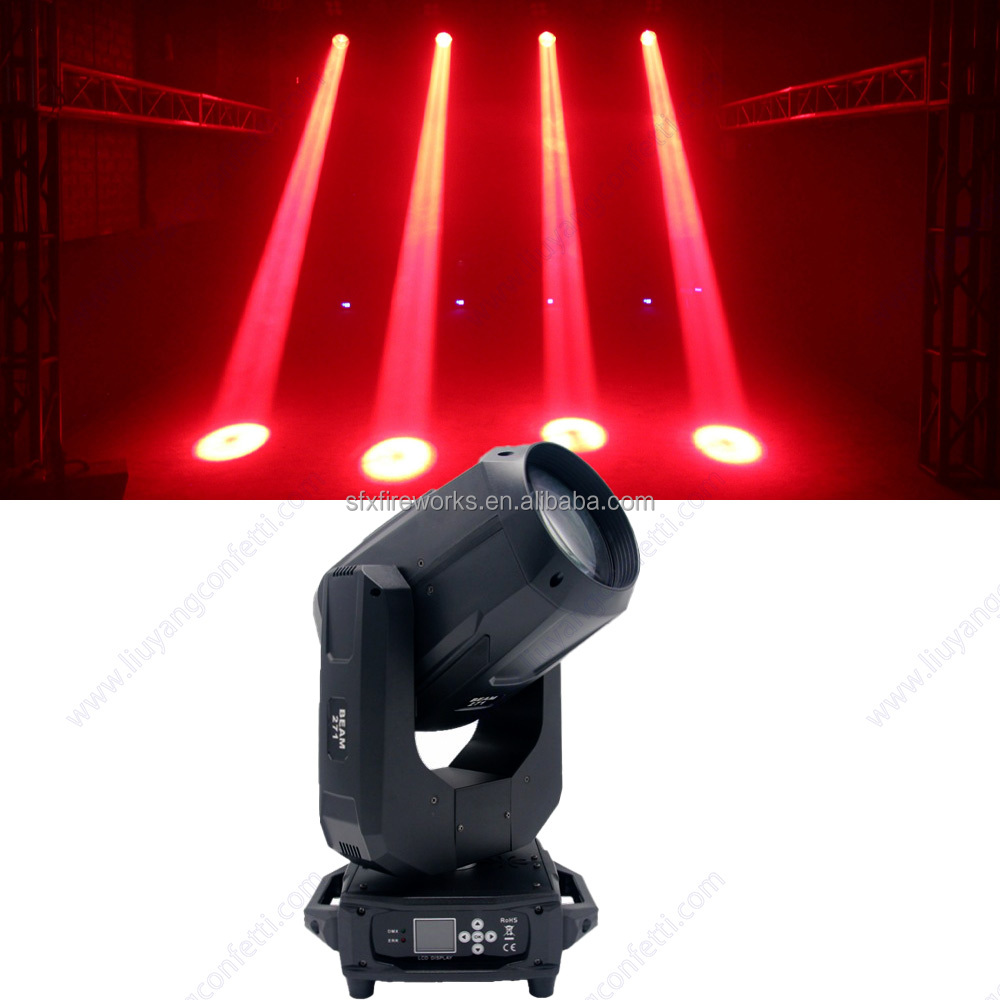

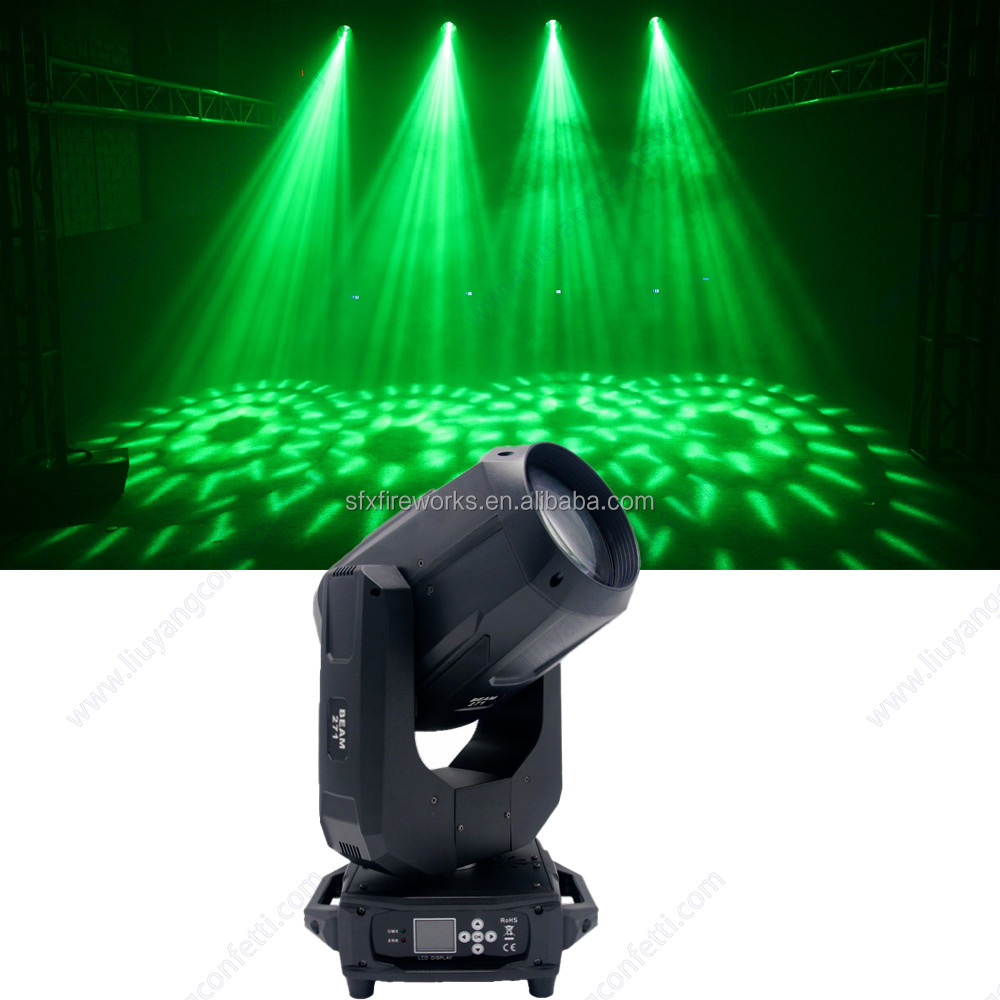

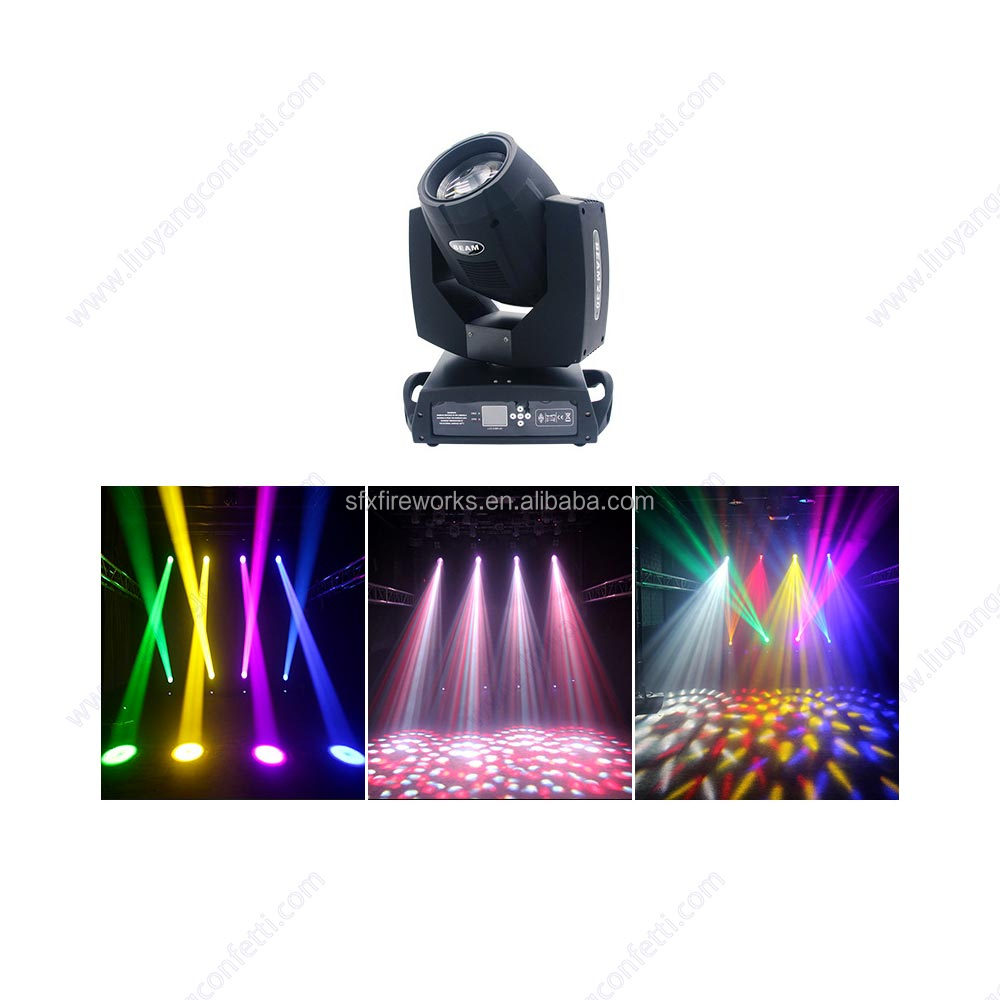

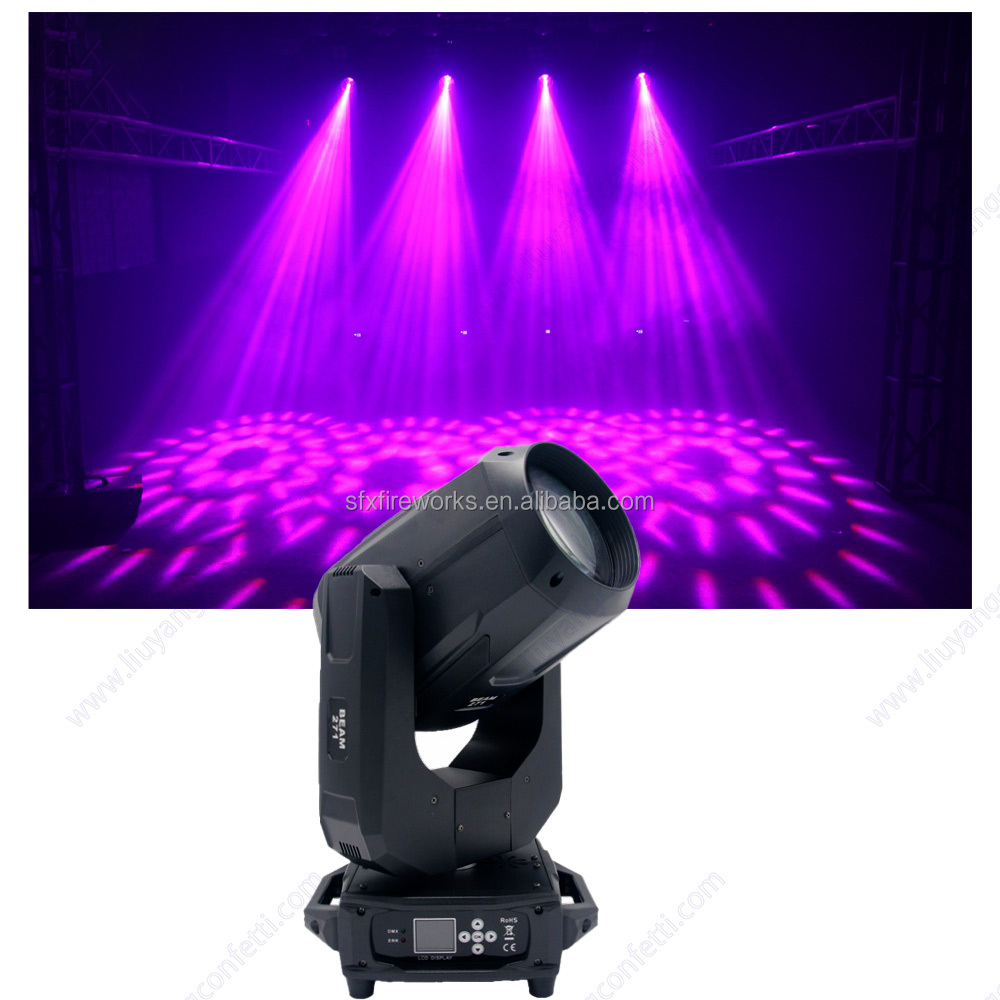

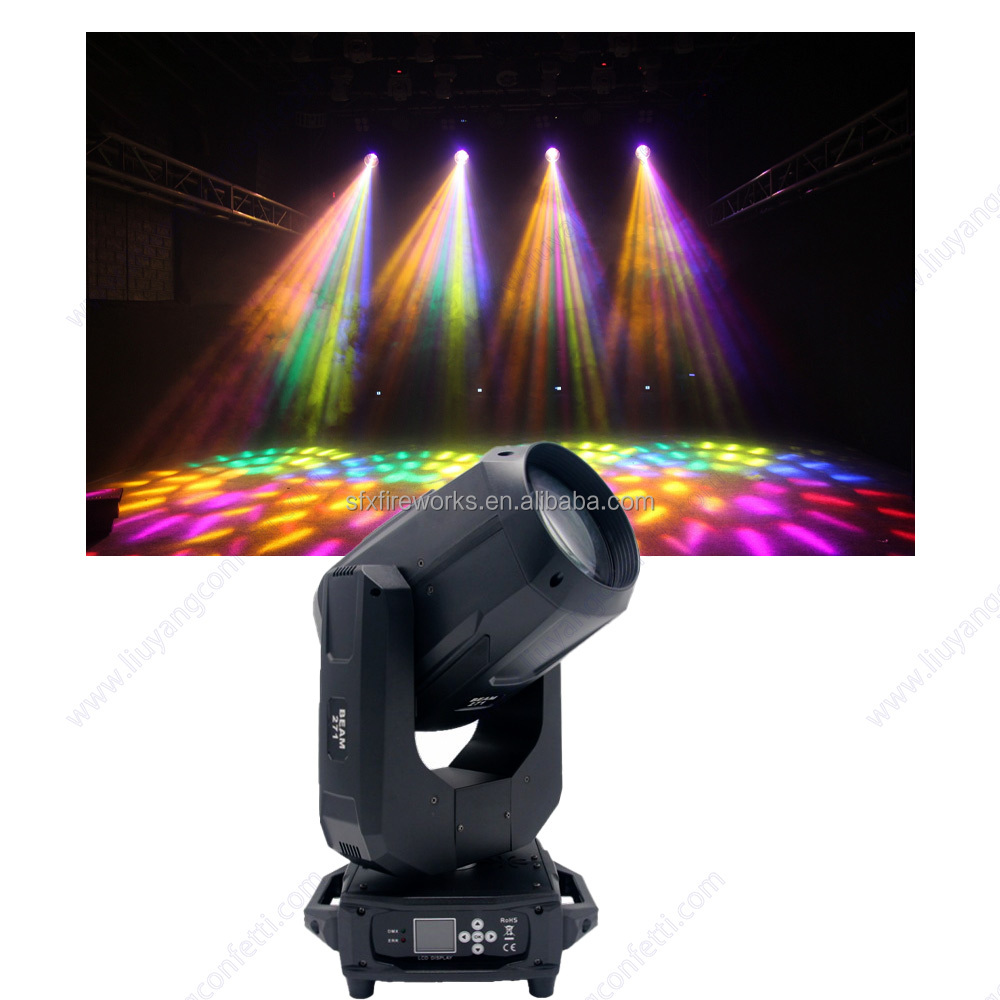

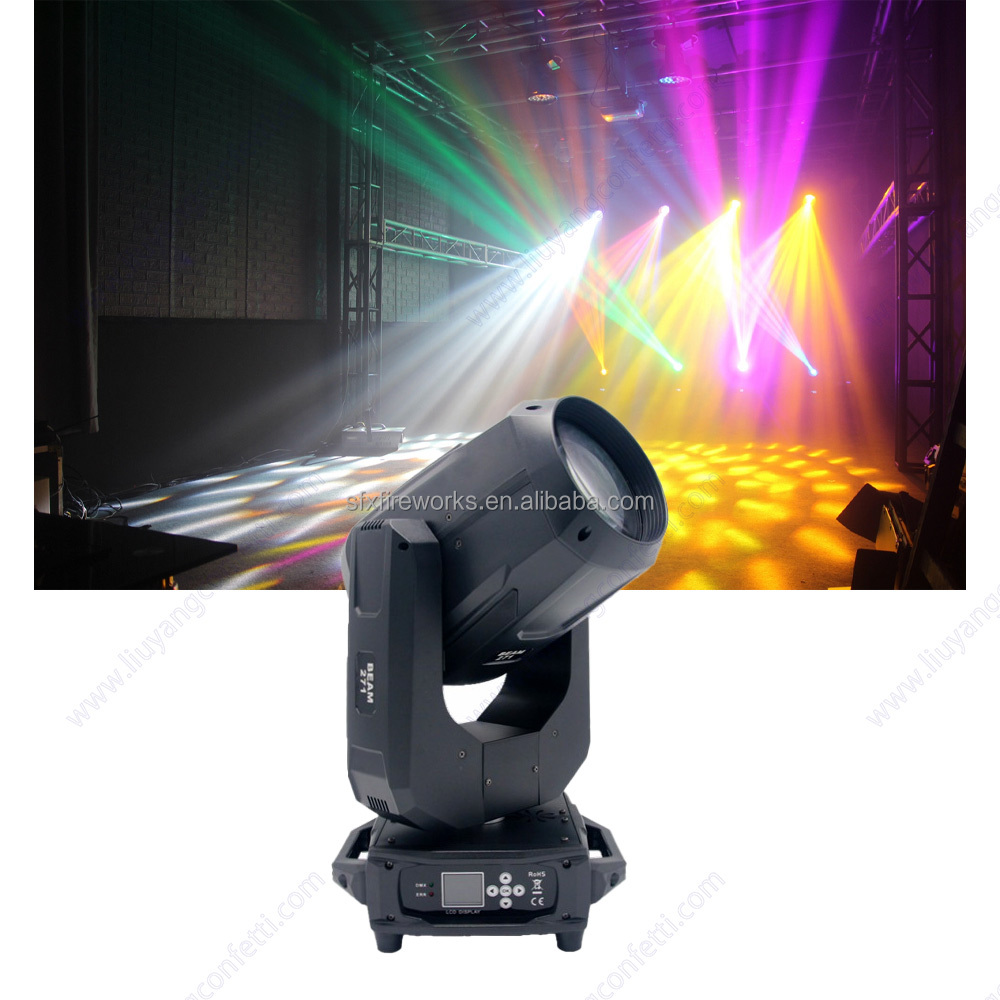

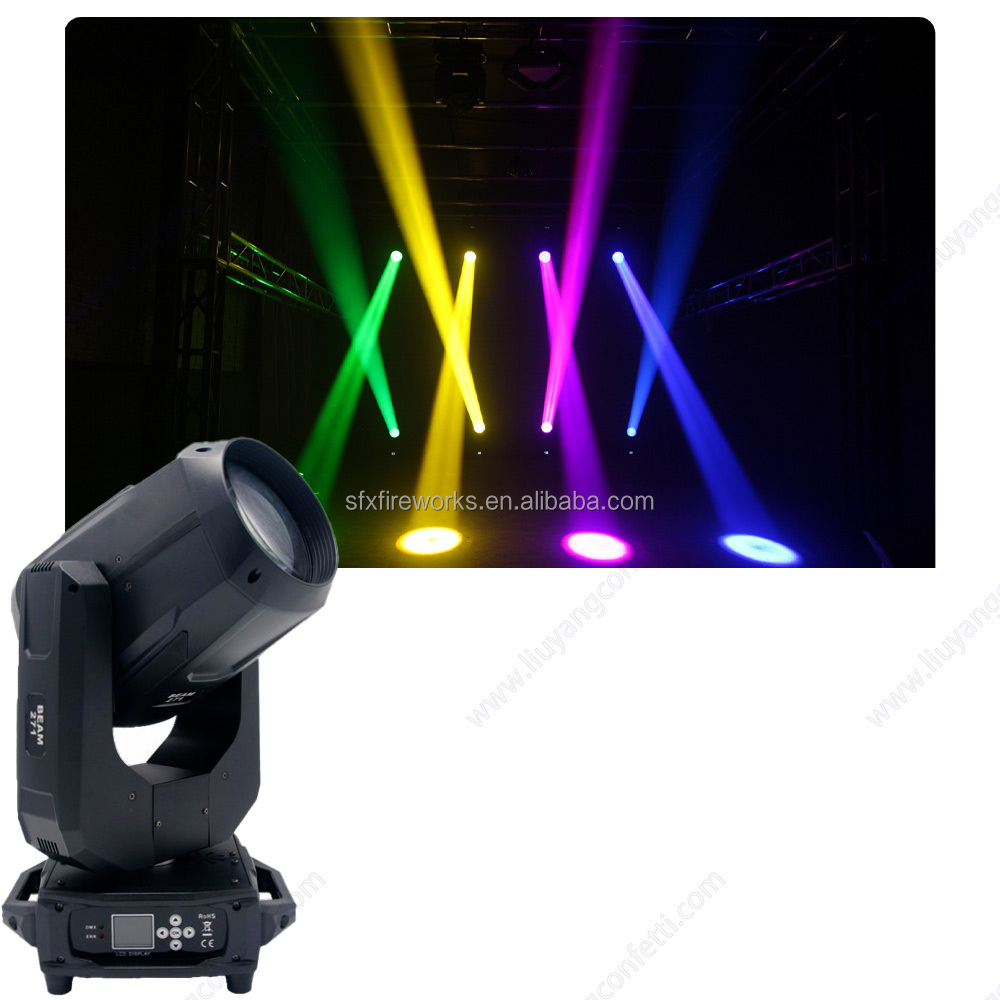

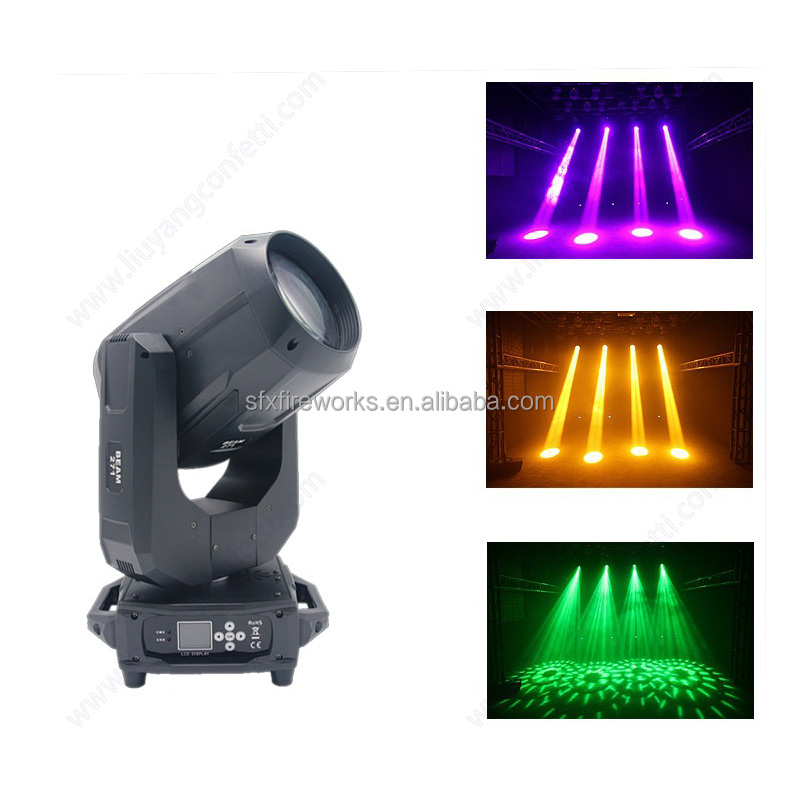

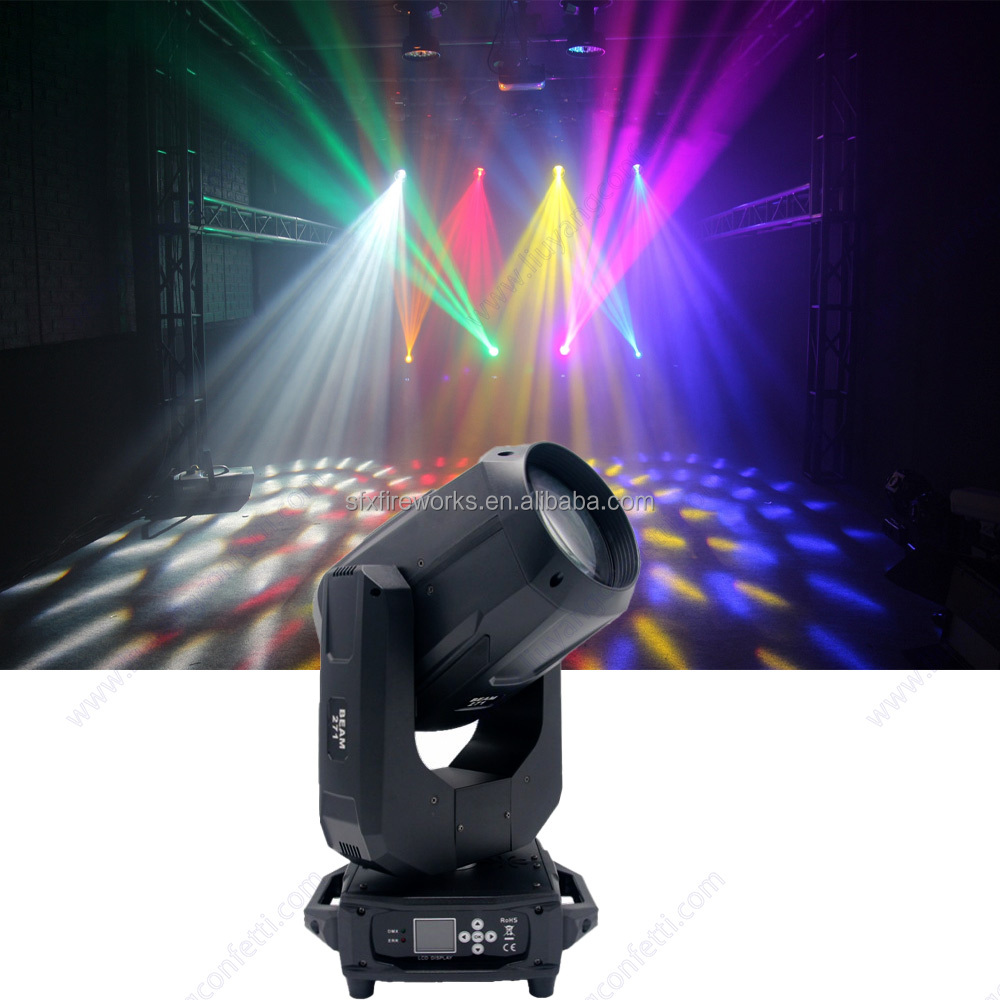

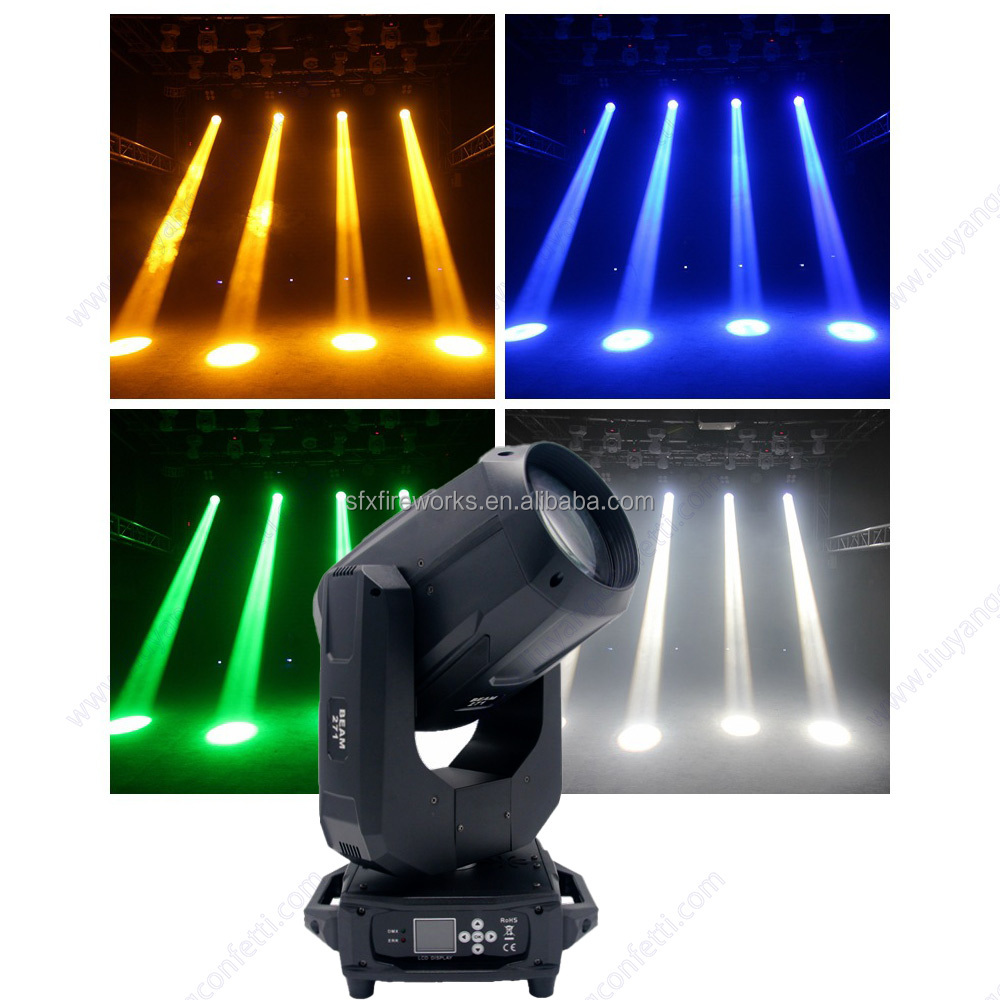

- Product name:Mini 230W Beam Moving Head Light
- Light source type:230W halogen bulb
- Light source lifespan:1500H
- Fixture output:6900lm
- Color:13 colors +open
- FIxed gobo:14 gobos+open
- Prism:Double prisms
- Light angle:3.8°
- Control mode:DMX512, master-slave, auto, sound
- IP rating:IP20
- Working Time (hours):50000
- CRI (Ra>):90
- Working Lifetime(Hour):1500
Specification
Specification

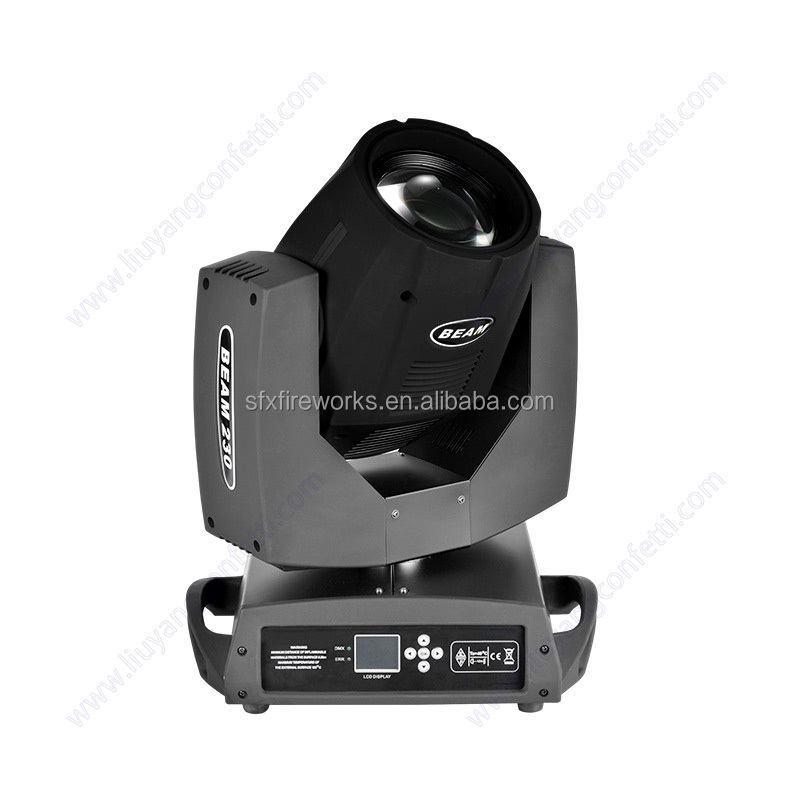

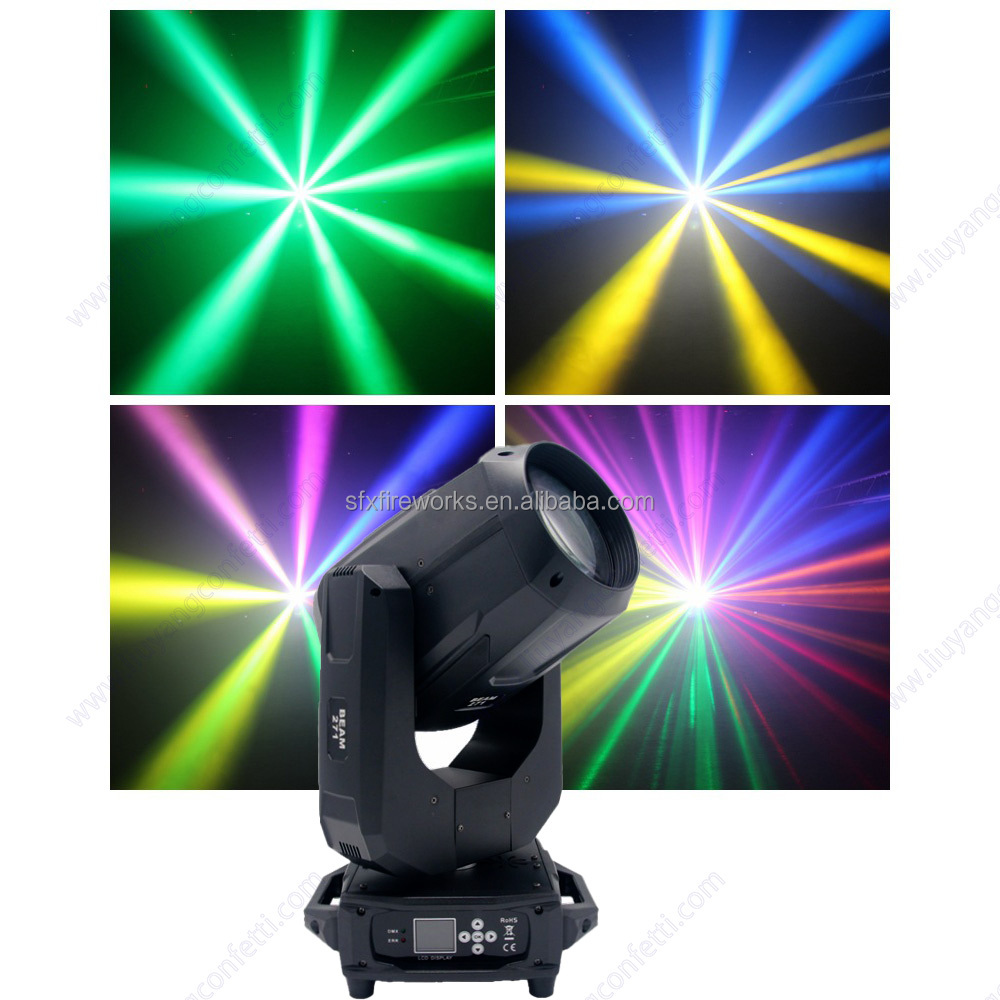

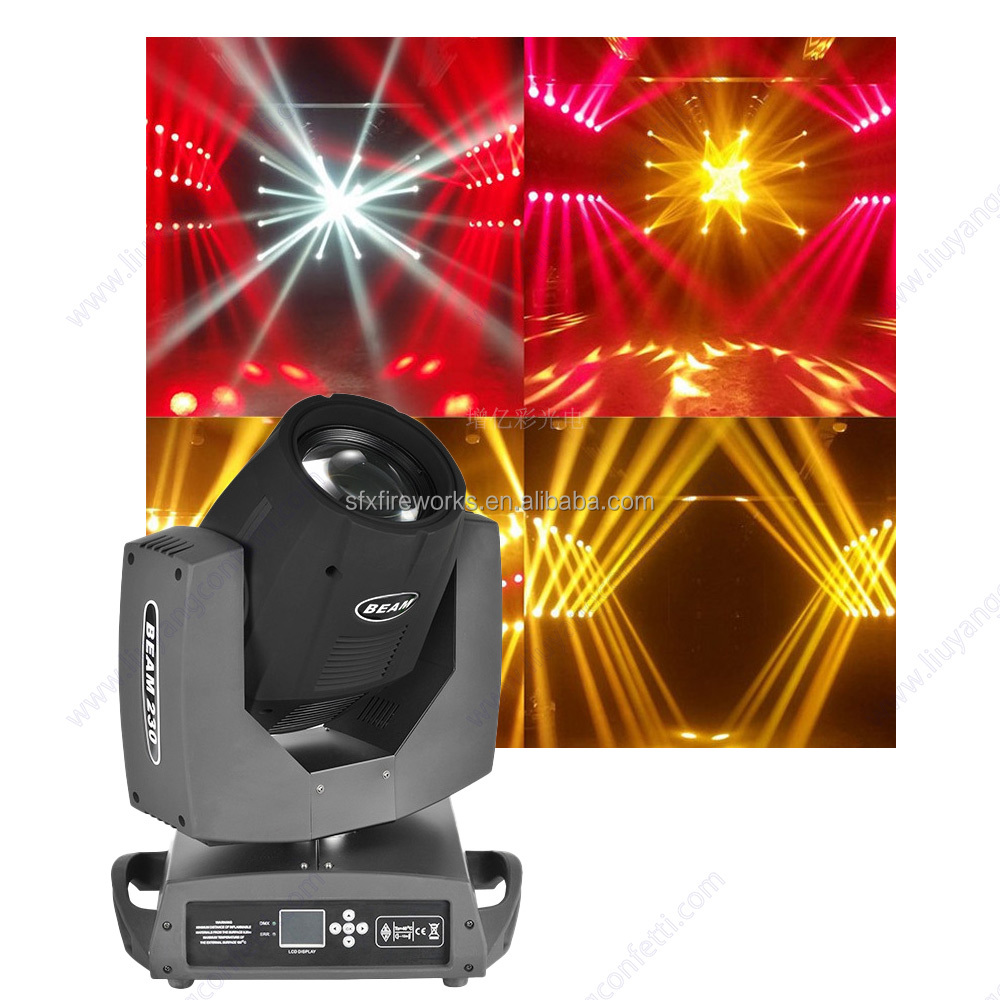

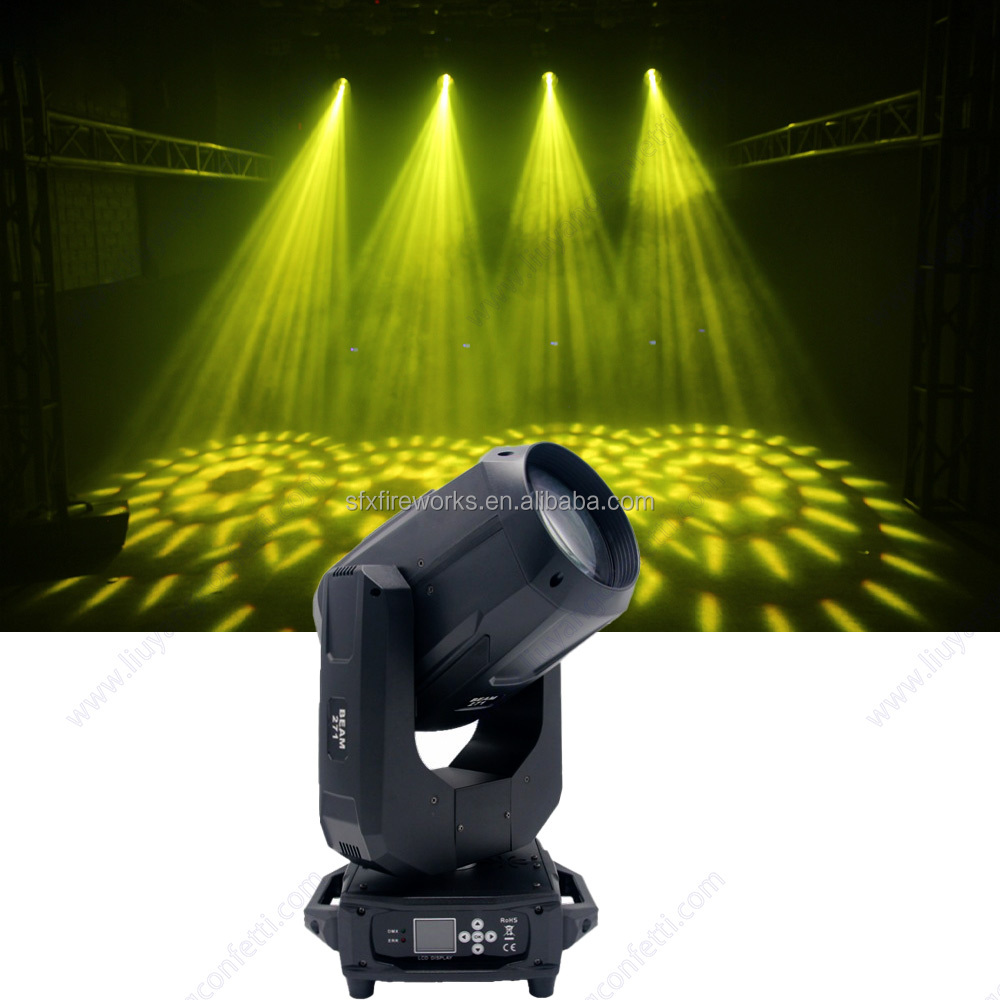

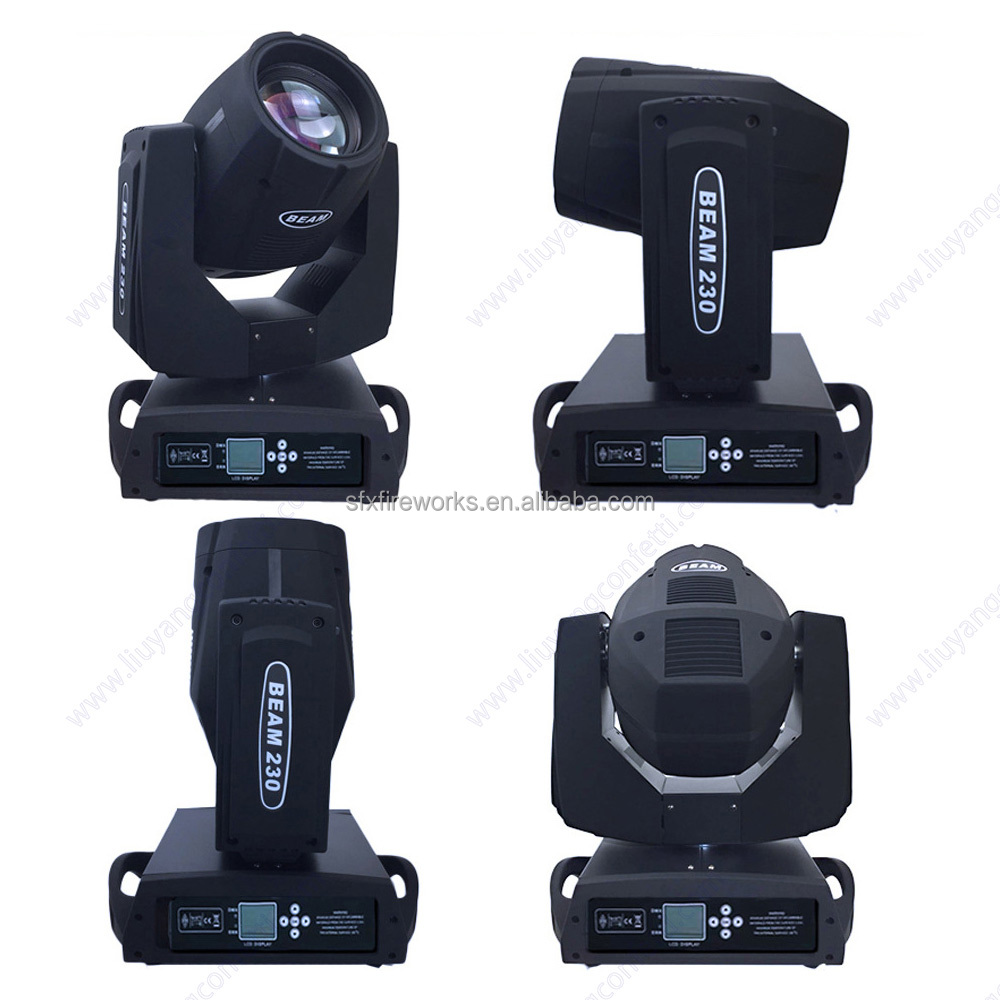

Product name | Private moulddesign mini 7R 230W beam moving head light |
Model | A-230M |
Electric parameter | |
Voltage | 110V~240V AC, 50/60Hz |
Power consumption | 350W |
Light source | |
Lamp | 7R 230W Osram halogen bulb (DMX on/off)) |
Life span | 1500H |
Lumen output | 6900lm |
Color temperature | 8000K |
Lamp DMX ON/OFF | Ignited by inverter,protect and lengthen the lifetime of the bulb |
Optics parameter | |
Lens | 3-layer optic glass lens |
Beam angle | 0-3.8° |
Prism | 8-facet rotation prism |
Color wheel | 1 Color wheel with 13 +1colors |
Gobo wheel | 1 Gobo wheel with 14 + 1gobos |
Focus | Motorized linearly adjustable |
Prism | 1 pcs 8-facet rotation prism(customizeable 16 or 32 prism) |
Frost | 1 pcs frost filter |
Dimming | Independent dimmer channel, 0-100% linear dimmer |
Strobe | Independent strobe channel, 1-13times/s, speed adjustable |
Head movement | Pan: 540°(16 bit) |
Tilt: 270°(16 bit) with auto-correction function | |
Software | |
Control | DMX512, master-slave, auto, sound |
Channel | 16/20CHs |
Other hardwares | |
Display | 2.6 inch full color touch LCD display |
Housing | Moulded fire proof ABS |
IP rating | IP20 |
Practical functions | Fixture and lamp usage time display highly Positioning precision Adjustable fan speed Built-in analyzer for easy fault finding, error messages Input signal isolating protection |
Package information | |
Product dimension | 470*330*270MM(LWH) |
Product N.W. | 13.2KG |
Package size and G.W. | 53*42*33CM, 16KG |
