- Warranty(Year):1-Year
- Lighting solutions service:Onsite metering
- Luminous Efficacy(lm/w):0
- Product Weight（kg）:0.1
- Place of Origin:Hunan, China
- Brand Name:Getyourreal
- Type:Remote Control
- Max. Load Power:10W
- Connection Mode:Cable

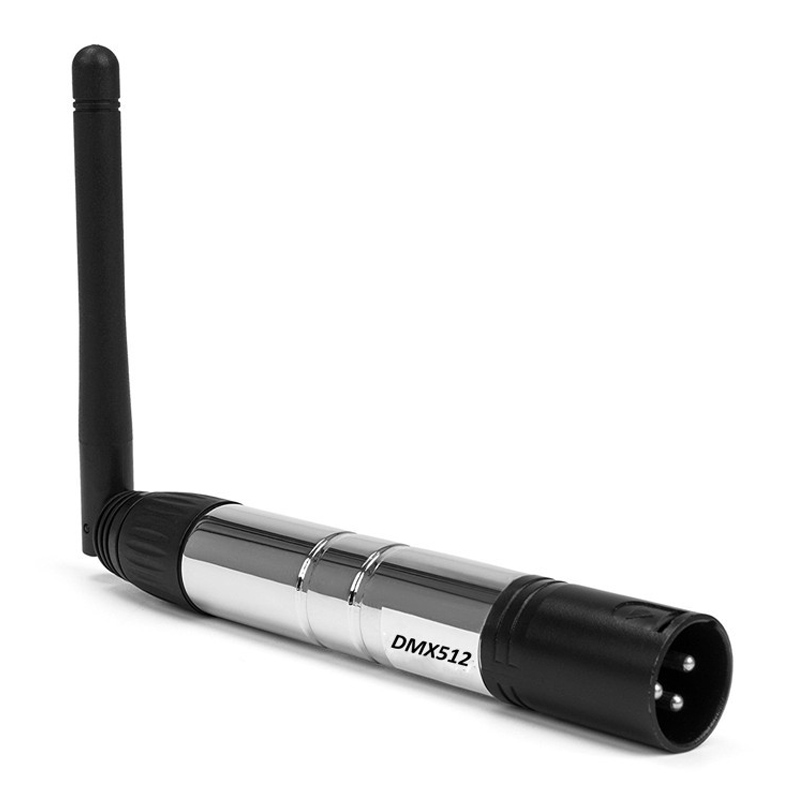

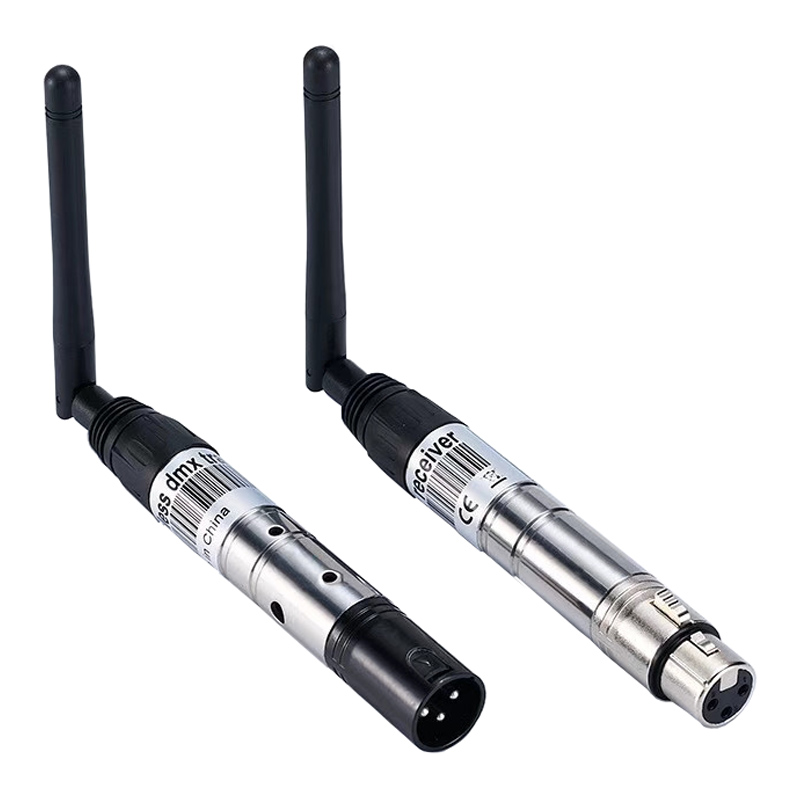

- Product name:Wireless DMX transceiver
- Working frequency:2.4GHz ISM band,2. 400-2. 525G
- Max. transmit power:20dBm
- Max. transmission distance:300m
- The reception sensitivity:-94dBm

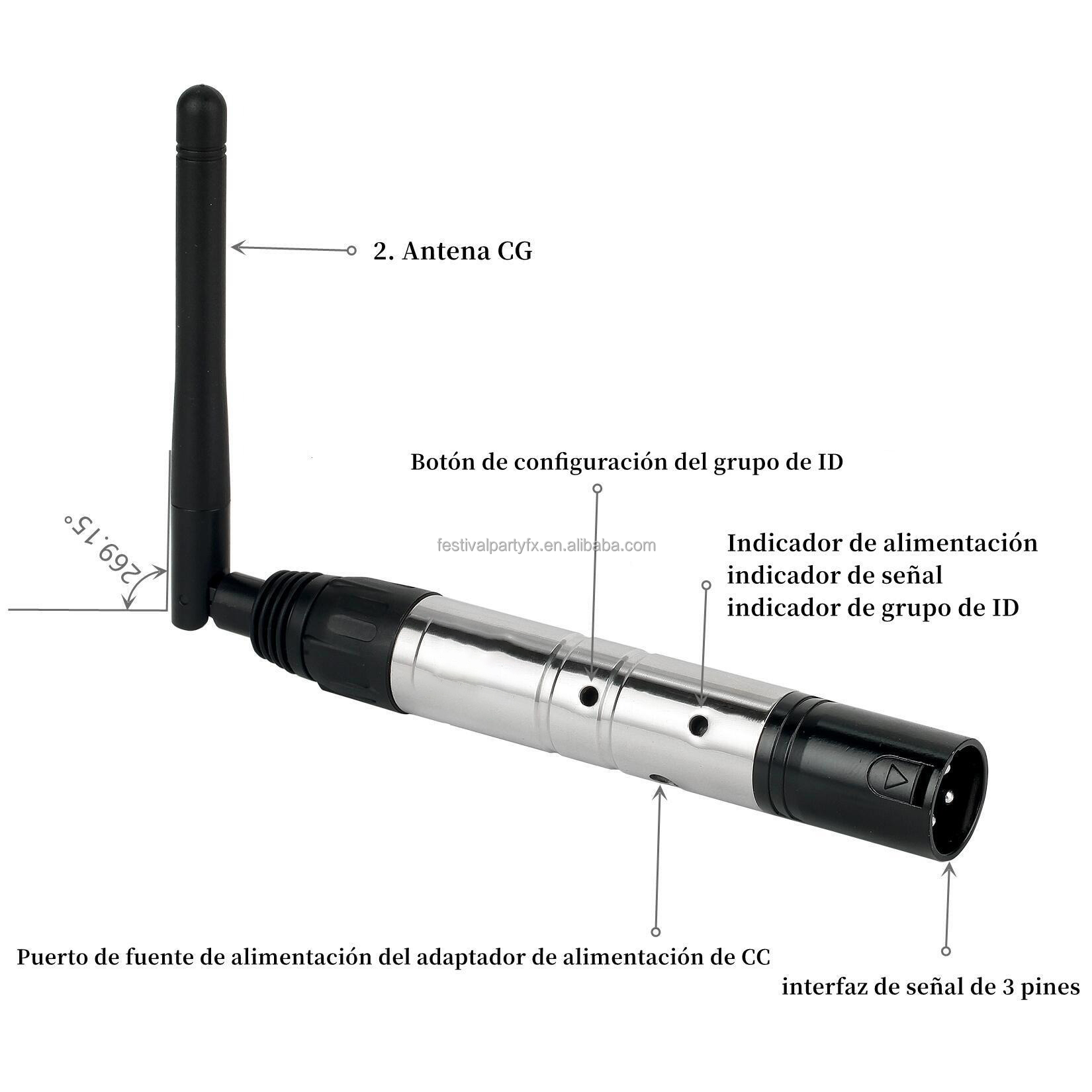

- DMX signal interface:3 pin male/female plug

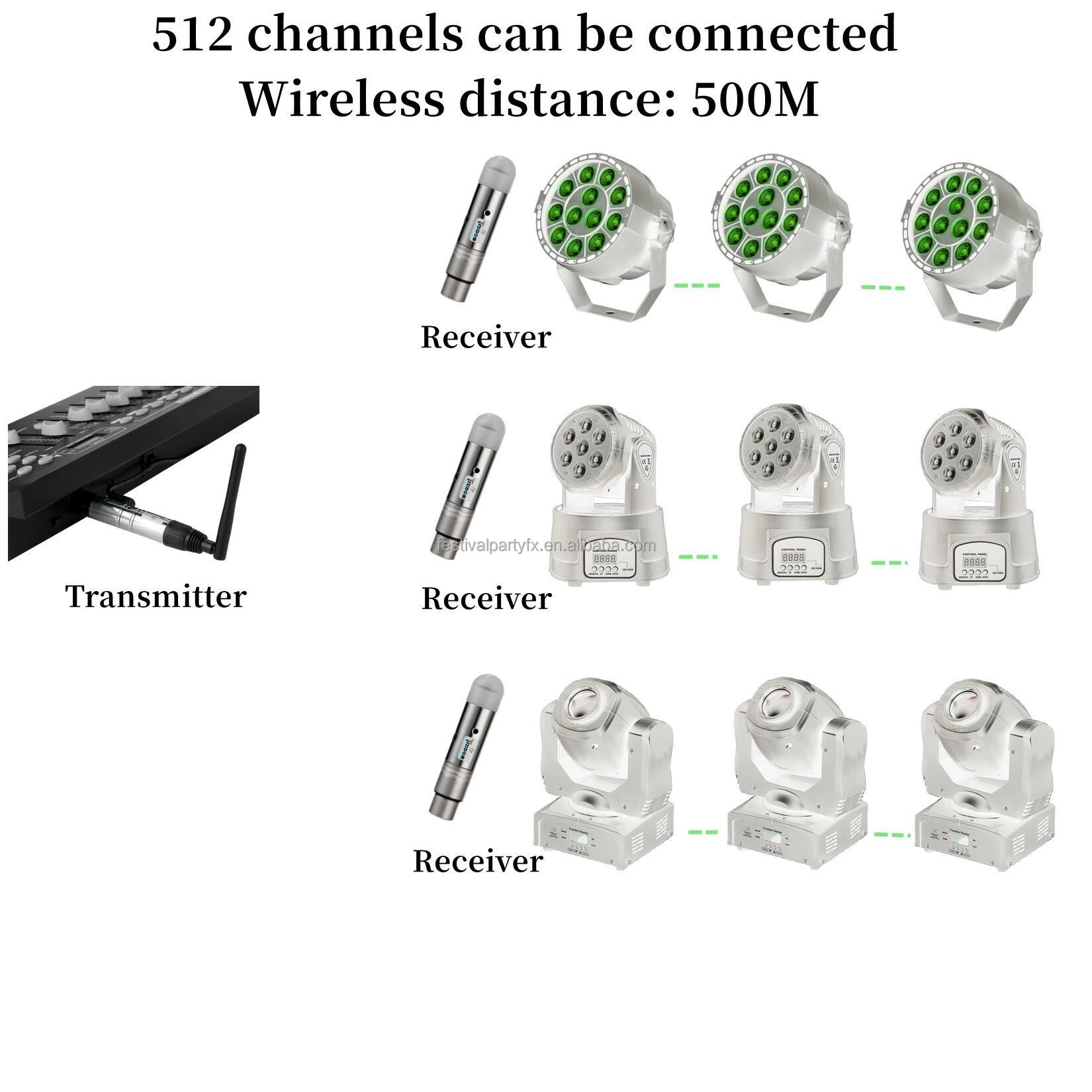

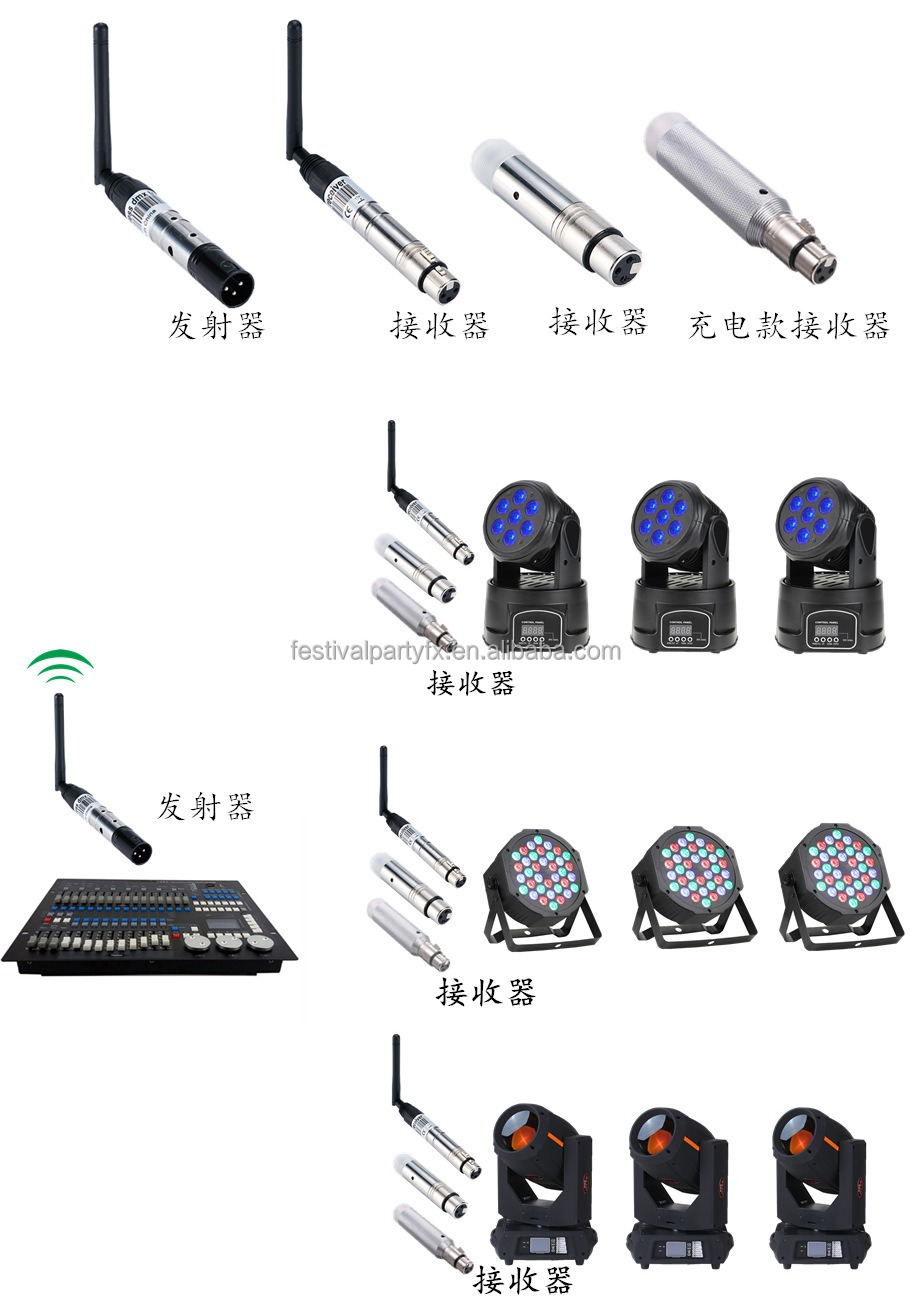

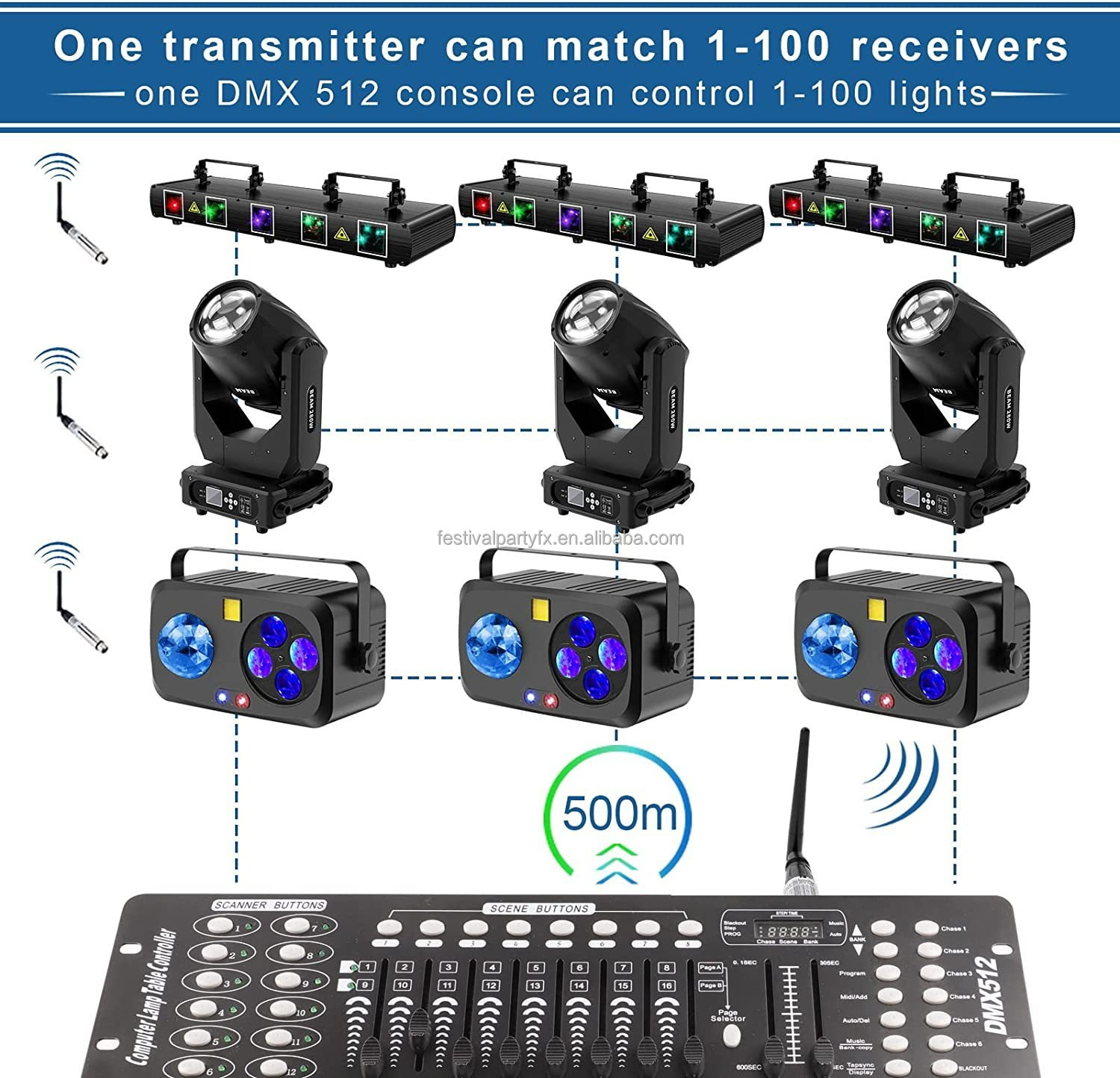

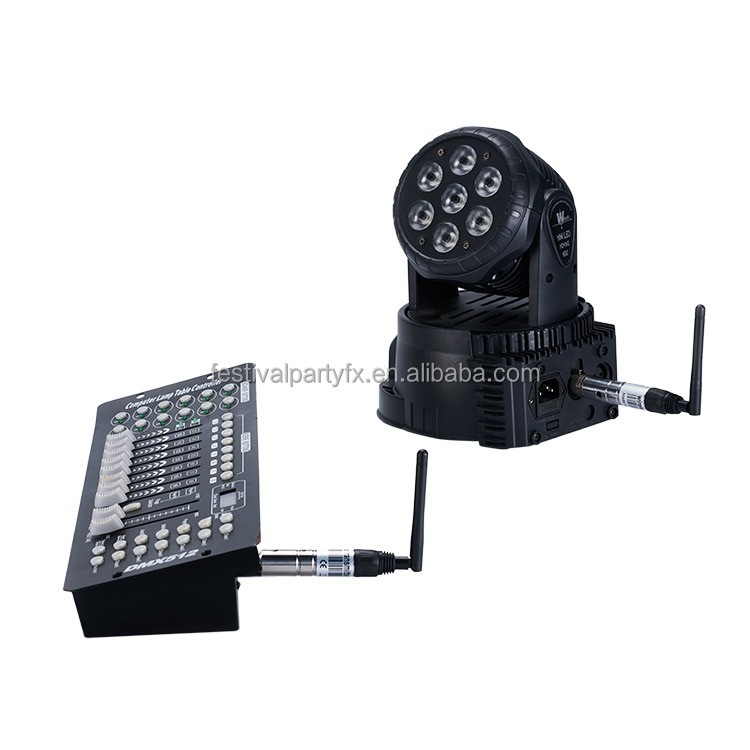

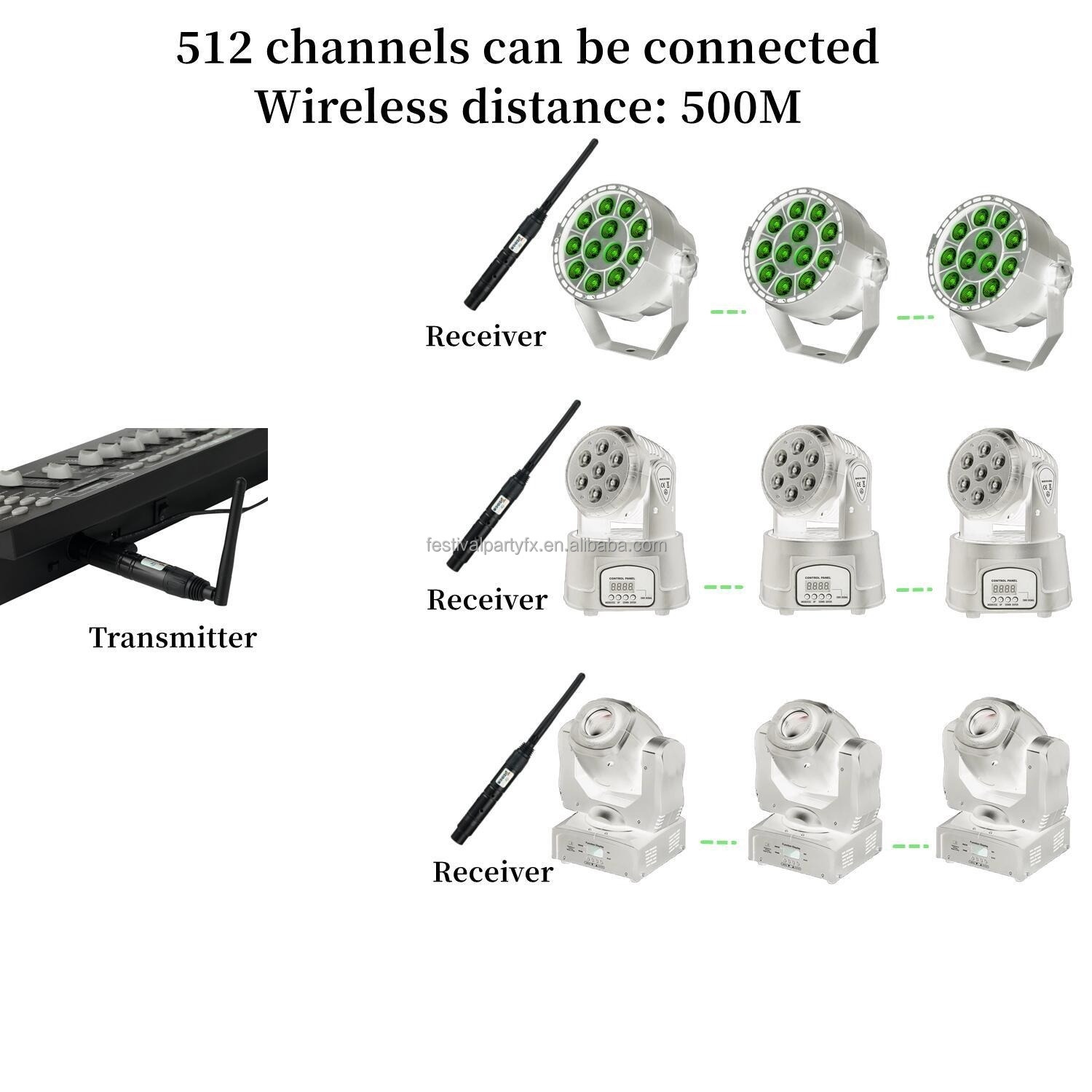

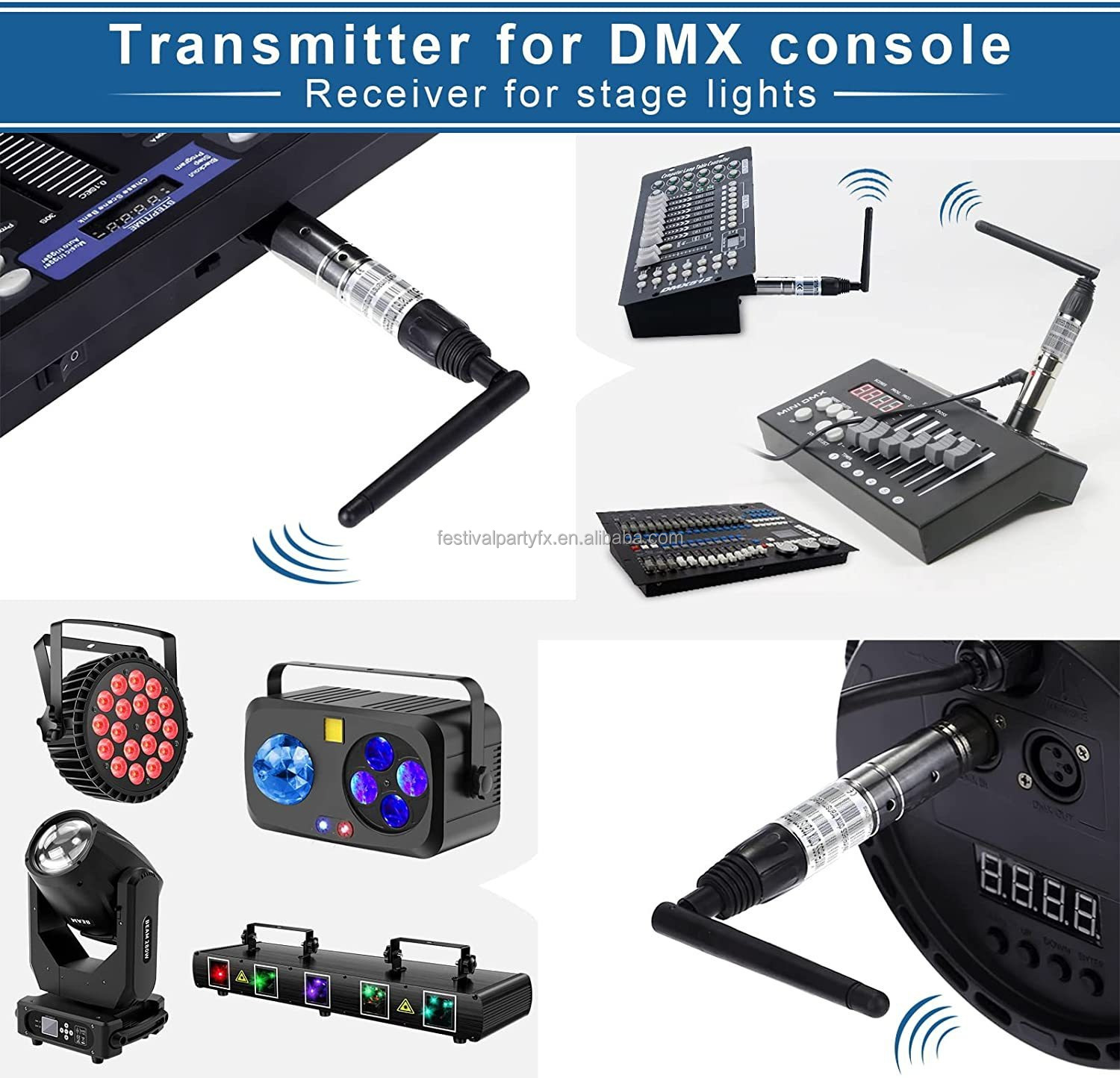

- Application:transmit and receive DMX signal
Specification
Product name | Wireless DMX transceiver |

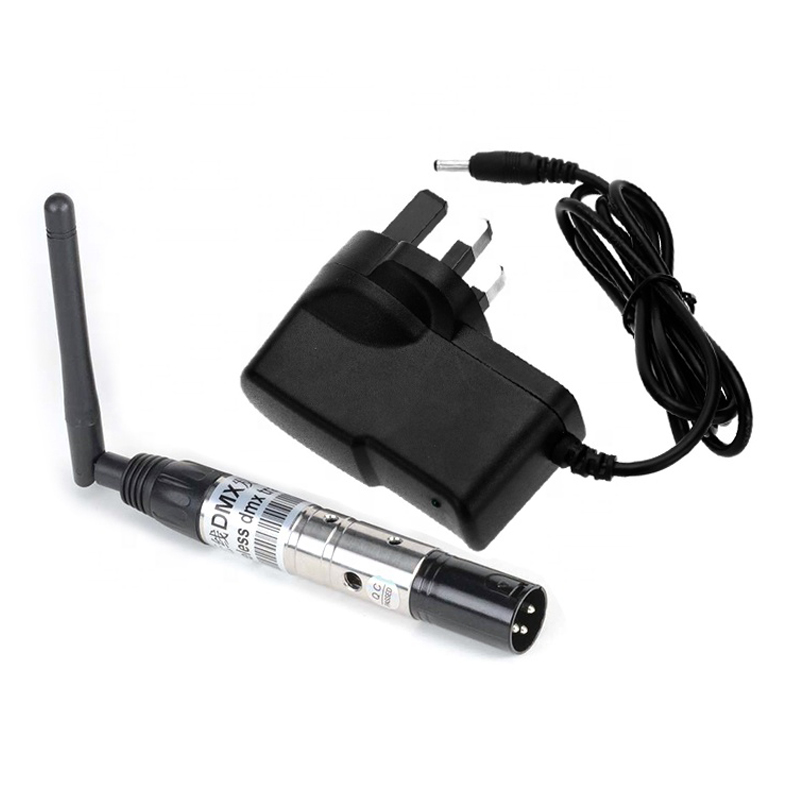

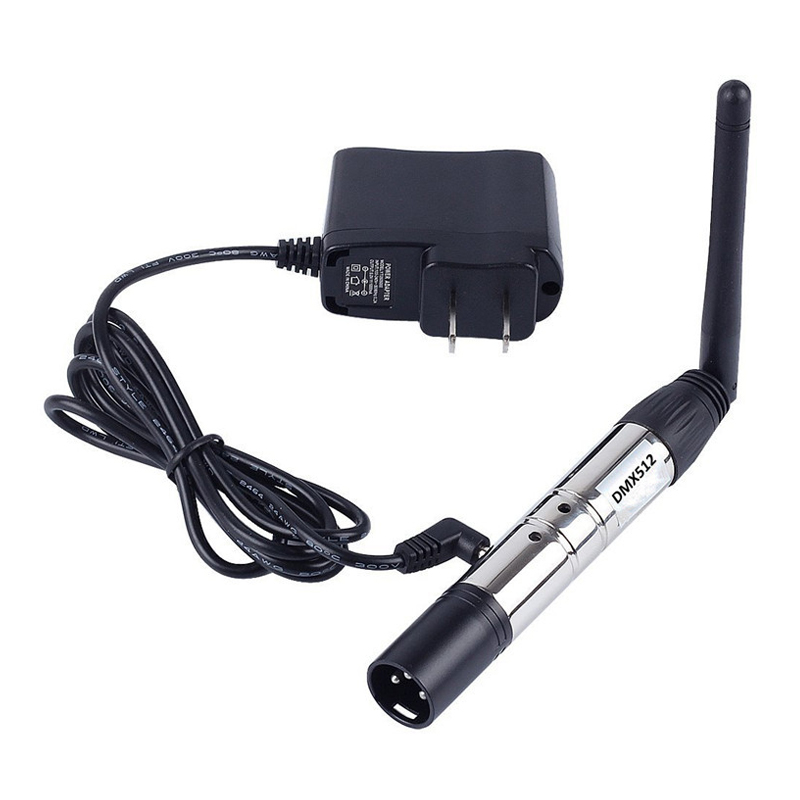

Input | 5V DC 500mA Min. |
Working RF frequency | 2.4GHz ISM band,2. 400-2. 525G, total 126 frequency channels, searching automatically |
Max. transmit power | 20dBm |
Max. transmission distance | 300m(Open space, depending on the environment) |
The reception sensitivity | -94dBm |

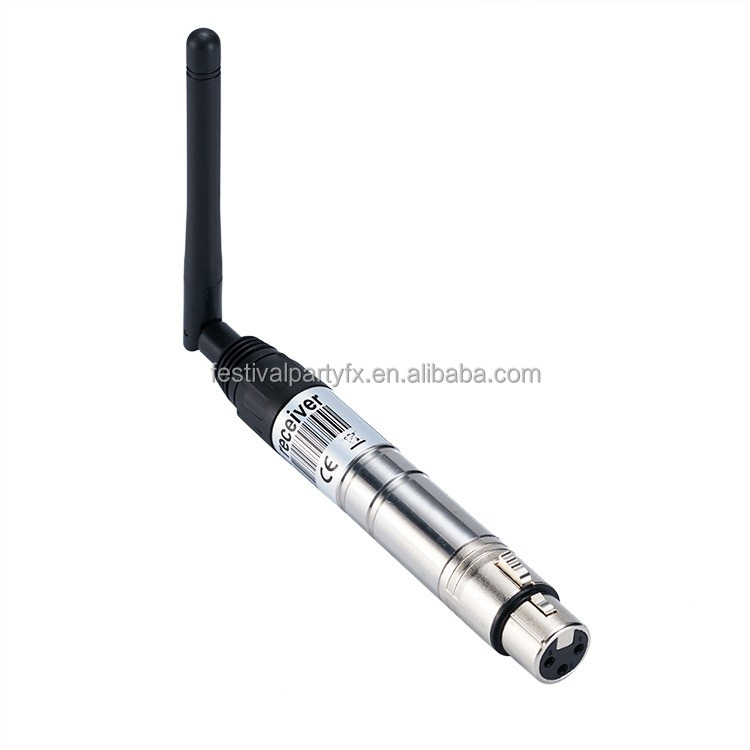

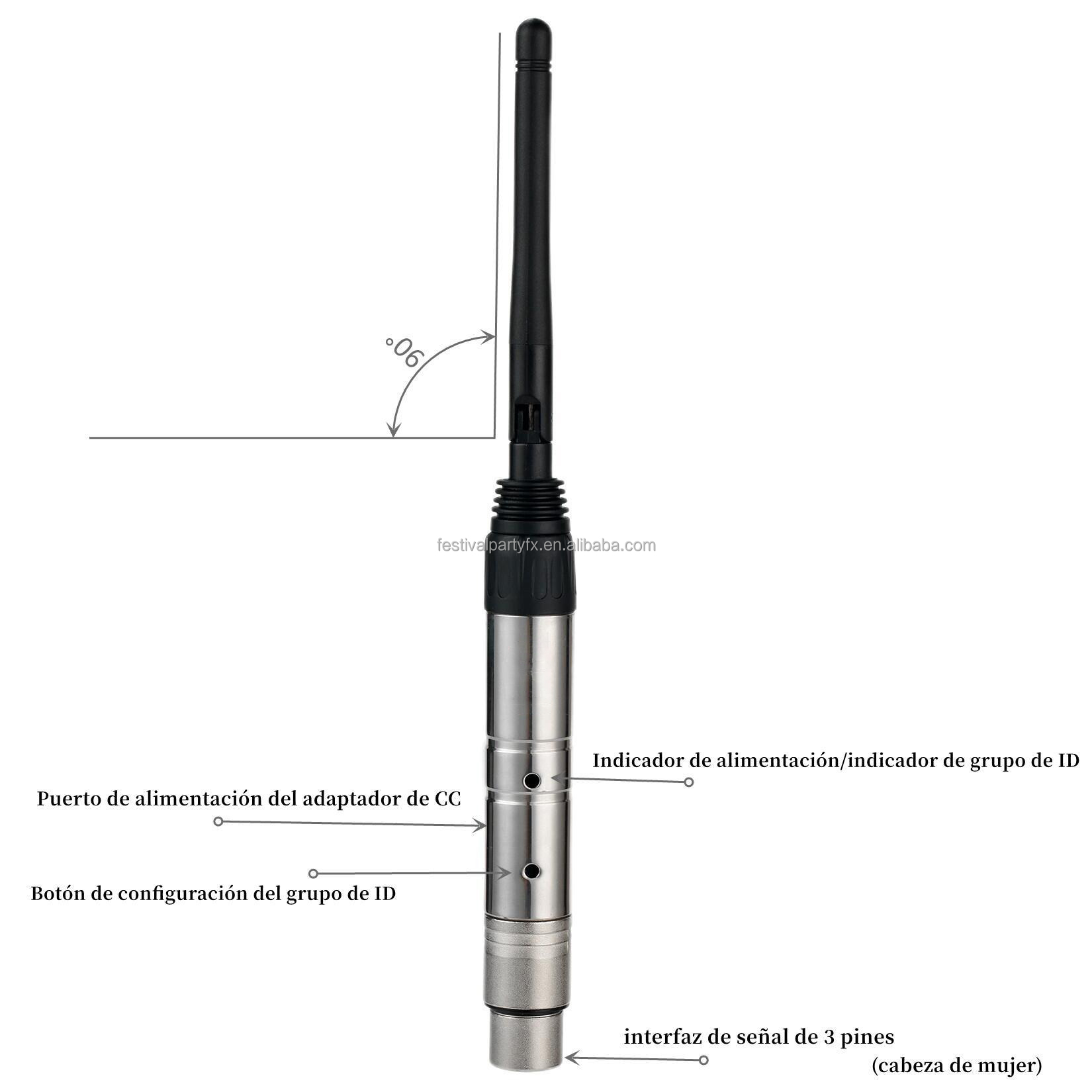

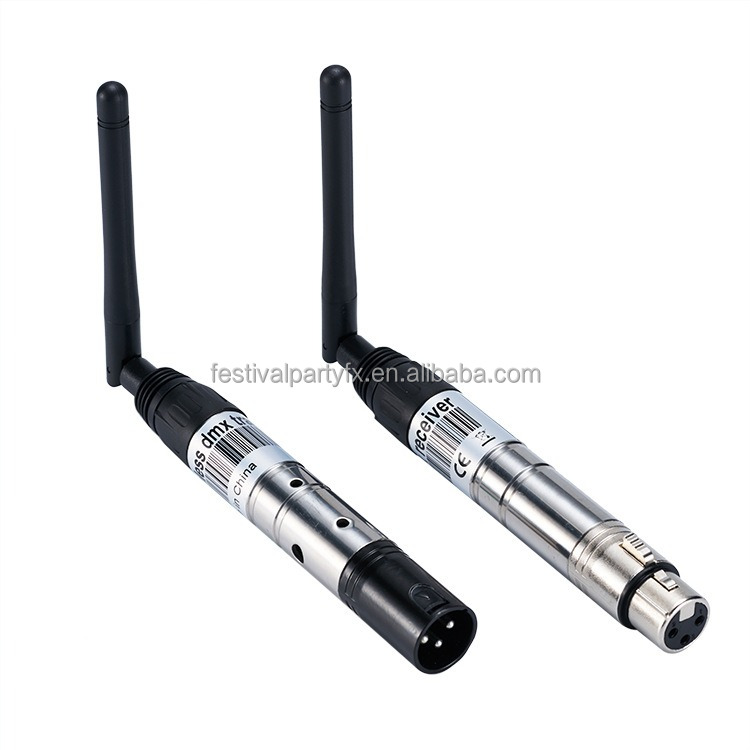

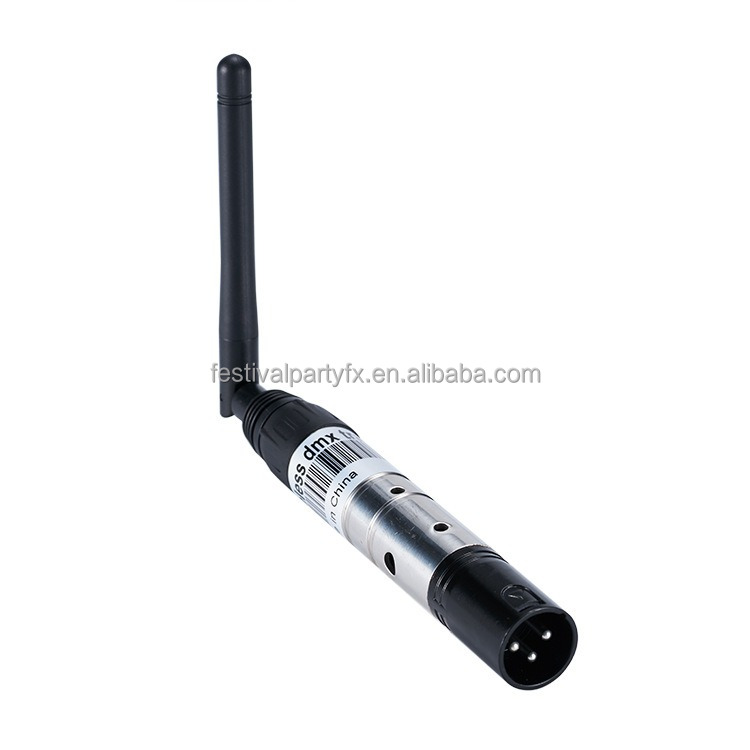

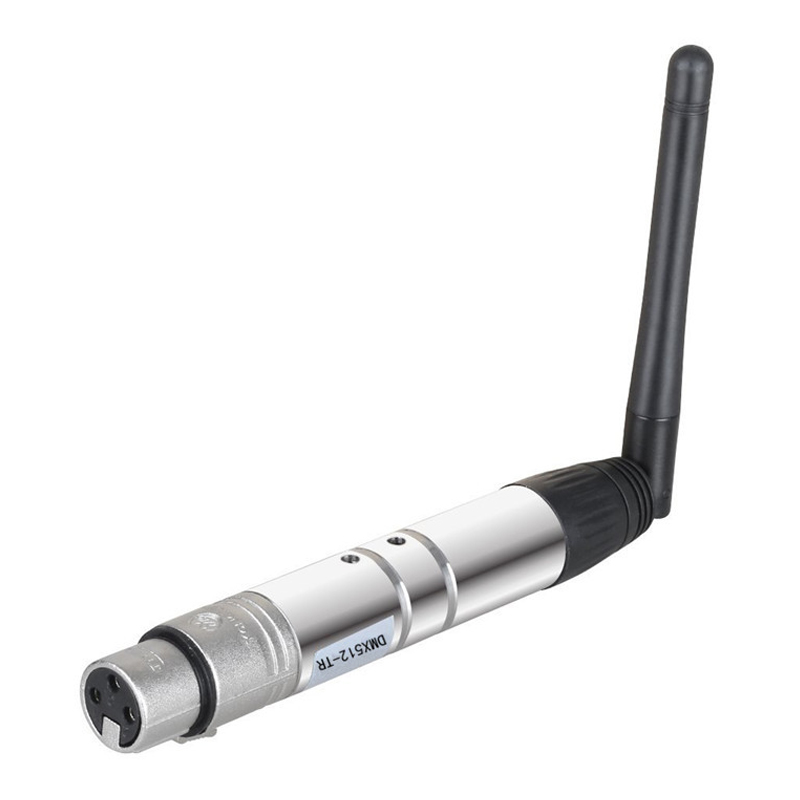

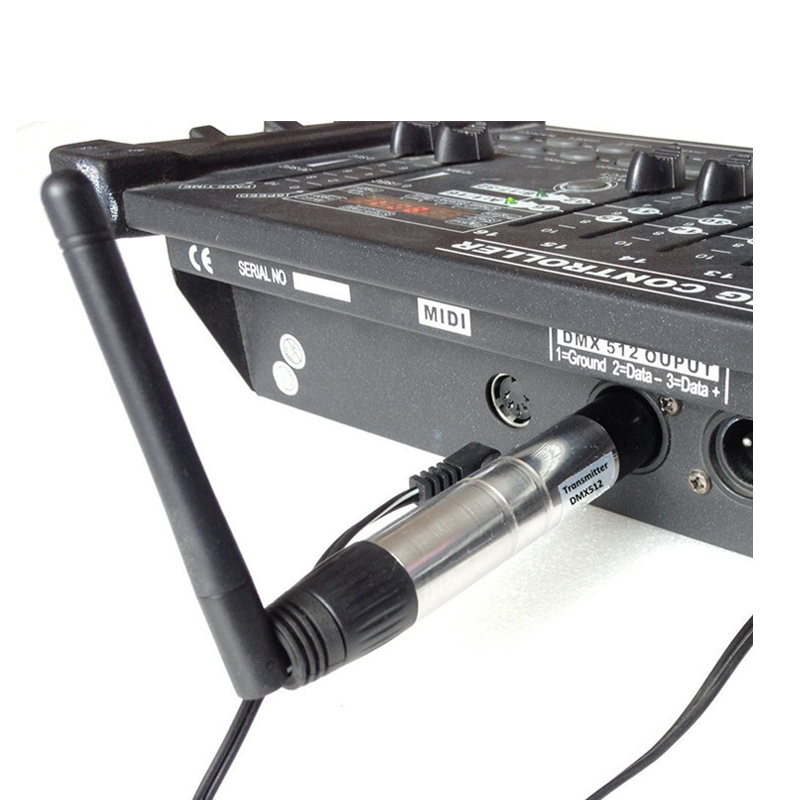

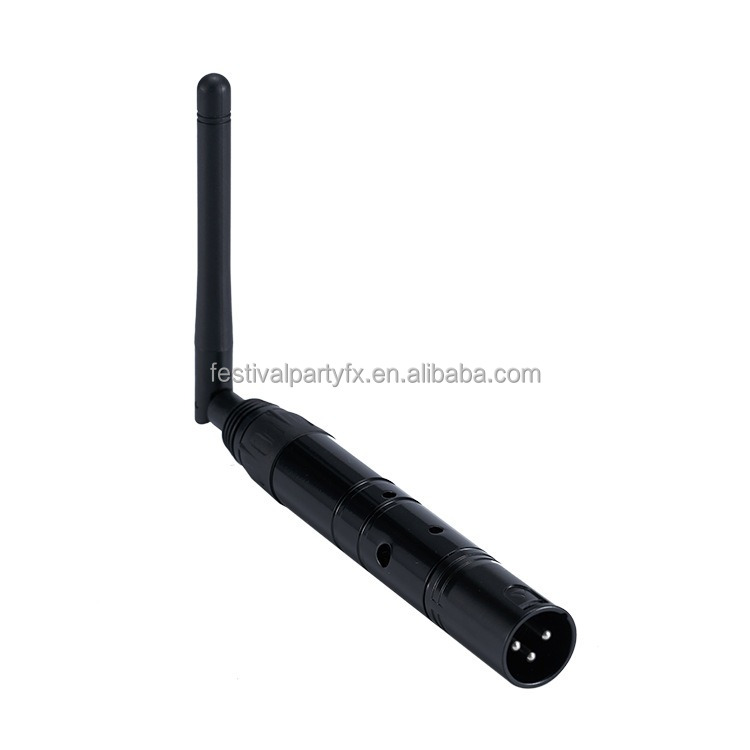

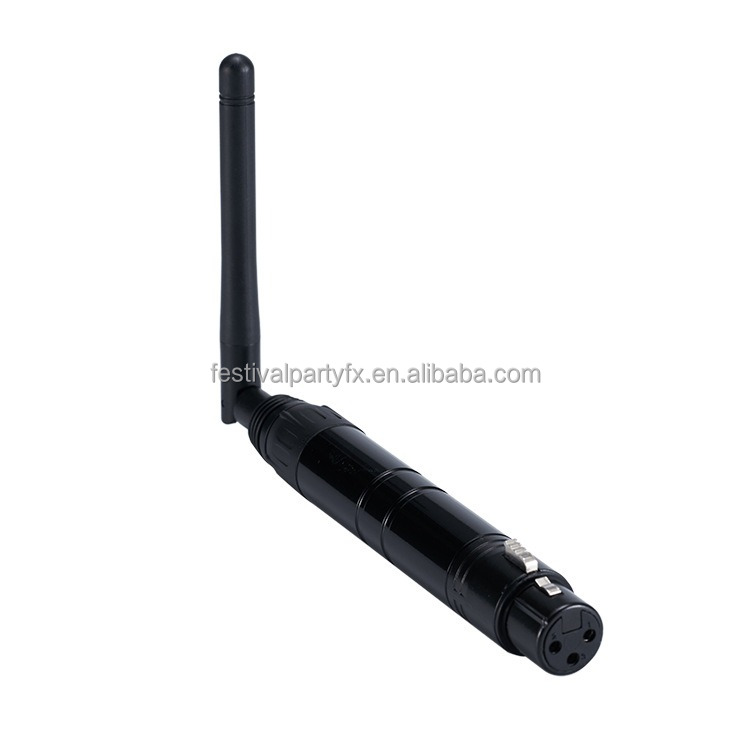

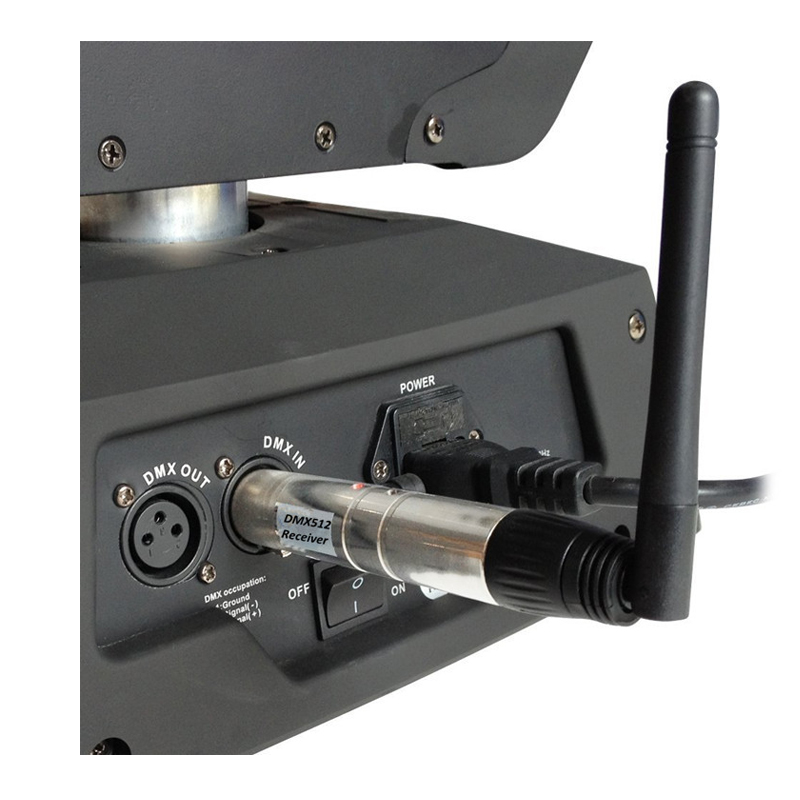

DMX signal interface | 3 pin male plug (for transmitter) & female plug (for receiver) |

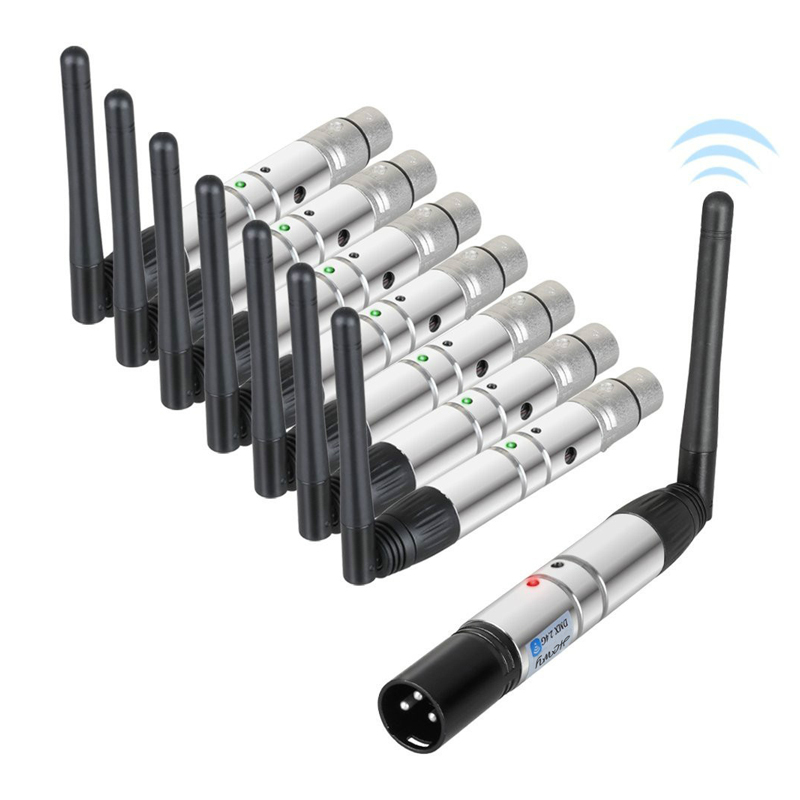

ID Code | 7 groups of ID codes that can be set, and users can use 16 groups of independent wireless networks in one place |

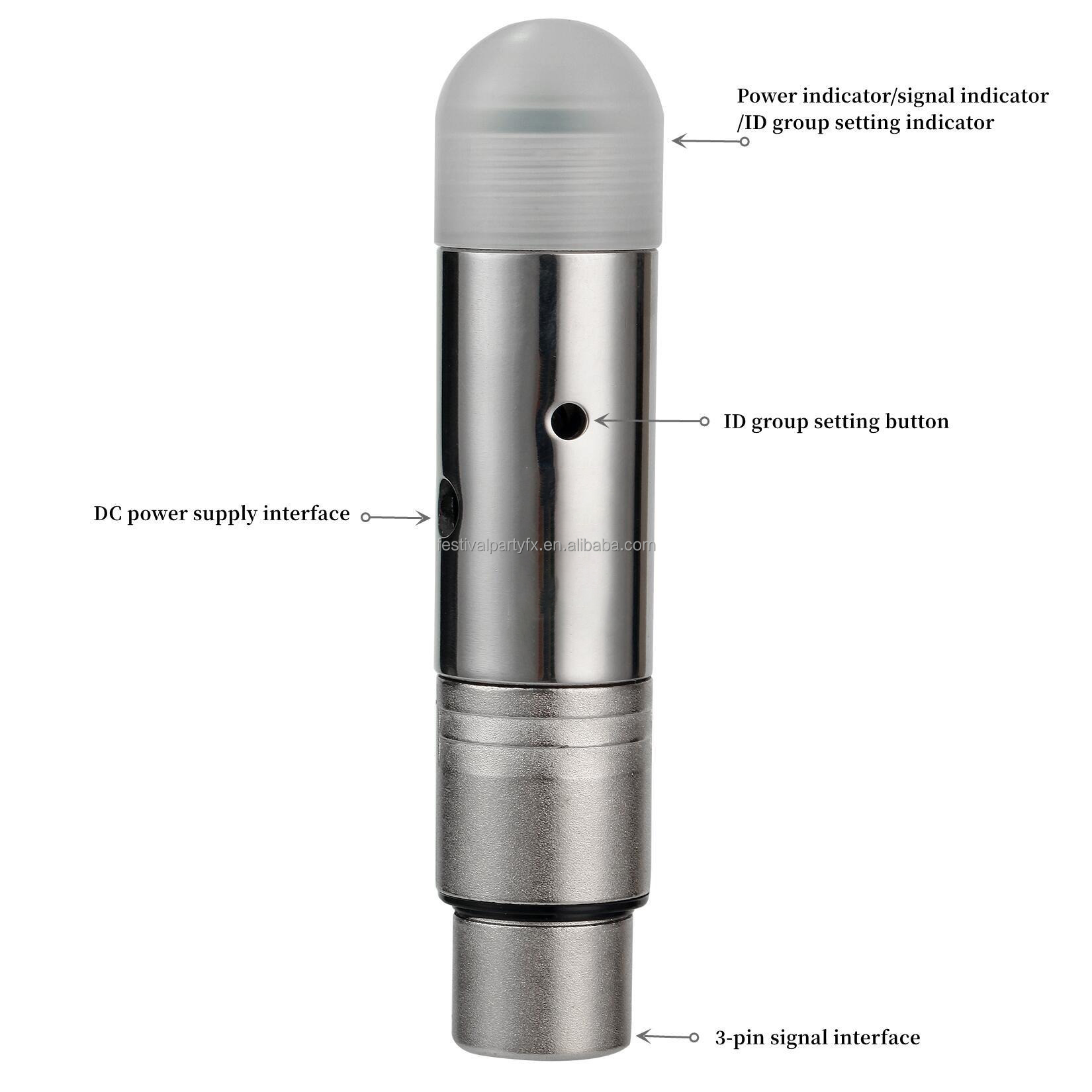

Display | Tricolor LED displaying |
Features | Frequency jump automatically in 126 frequency channels, and automatically select non-interference frequency channel to ensure the reliability of communication |
